Custom Specialty Gas Cabinet for High Purity Gas Delivery Systems

Introduction

As semiconductor technology, photovoltaic manufacturing, pharmaceuticals, biotechnology, and advanced materials continue to evolve, production environments demand increasingly stringent gas delivery standards. High-purity process gases directly affect product yield, process stability, equipment lifetime, and operational safety. Even microscopic contamination or pressure fluctuations can result in wafer defects, product failures, or costly production downtime.

A Custom Specialty Gas Cabinet is one of the most critical components within a High Purity Gas Delivery System. It provides a safe, enclosed, and intelligent environment for storing, controlling, monitoring, and delivering hazardous, toxic, corrosive, flammable, or ultra-high purity gases to manufacturing equipment.

Unlike standard gas cabinets, custom specialty gas cabinets are engineered according to specific process requirements, gas properties, cleanroom standards, automation levels, and regional safety regulations. They integrate advanced mechanical design, precision pressure control, gas detection, automatic shutdown functions, and intelligent PLC monitoring to ensure maximum safety while maintaining exceptional gas purity.

This article explores the engineering principles, applications, components, customization options, and selection criteria of custom specialty gas cabinets used in modern high-purity gas delivery systems.

What Is a Custom Specialty Gas Cabinet?

A custom specialty gas cabinet is an enclosed gas handling system specifically designed for the safe storage and controlled delivery of specialty gases used in critical industrial processes.

It serves several important purposes:

• Secure storage of gas cylinders
• Pressure regulation
• Gas flow control
• Leak detection
• Automatic emergency shutdown
• Gas purity preservation
• Process monitoring
• Operator protection

Unlike conventional cylinder storage, specialty gas cabinets integrate multiple safety devices into one compact enclosure, significantly reducing operational risks while ensuring continuous gas supply.

These systems are commonly designed for:

• Toxic gases
• Corrosive gases
• Pyrophoric gases
• Flammable gases
• Oxidizing gases
• Ultra-high purity gases
• Specialty mixed gases

Importance of High Purity Gas Delivery Systems

Modern semiconductor fabrication requires gas purity levels exceeding 99.9999% (6N) and sometimes reaching 99.9999999% (9N).

Any contamination may introduce:

• Particle defects
• Moisture contamination
• Oxygen contamination
• Hydrocarbon contamination
• Metal ion contamination
• Process instability
• Lower product yield

A high purity gas delivery system must therefore maintain:

• Zero external contamination
• Stable pressure
• Constant flow
• Minimal dead volume
• Leak-tight sealing
• Clean internal surfaces

The specialty gas cabinet acts as the first safety and purity barrier within the entire gas distribution system.

Industries That Require Specialty Gas Cabinets

Custom gas cabinets are widely used in numerous high-technology industries.

Semiconductor Manufacturing

Semiconductor fabrication facilities use hundreds of specialty gases during:

• Chemical Vapor Deposition (CVD)
• Atomic Layer Deposition (ALD)
• Dry Etching
• Ion Implantation
• Lithography
• Epitaxy

Typical gases include:

• Silane (SiH₄)
• Ammonia (NH₃)
• Nitrogen Trifluoride (NF₃)
• Chlorine (Cl₂)
• Hydrogen Chloride (HCl)
• Diborane (B₂H₆)
• Arsine (AsH₃)
• Phosphine (PH₃)

These gases require highly specialized cabinet designs with redundant safety protection.

LED Manufacturing

LED production relies on precise gas mixtures for epitaxial growth processes.

Specialty gas cabinets ensure:

• Stable pressure
• Consistent gas purity
• Safe toxic gas handling
• Continuous operation

Pharmaceutical Industry

High purity gases support:

• Sterile production
• Laboratory analysis
• Fermentation
• Controlled atmosphere processing

Gas cabinets help maintain GMP compliance while protecting operators.

Biotechnology

Biotechnology laboratories require specialty gas systems for:

• Cell culture
• Bioreactors
• Analytical instruments
• Research laboratories

Custom cabinets improve laboratory safety and reduce contamination risks.

Solar Cell Manufacturing

Photovoltaic production uses specialty gases for:

• PECVD
• Thin-film deposition
• Surface treatment

Reliable gas cabinets improve manufacturing efficiency and product consistency.

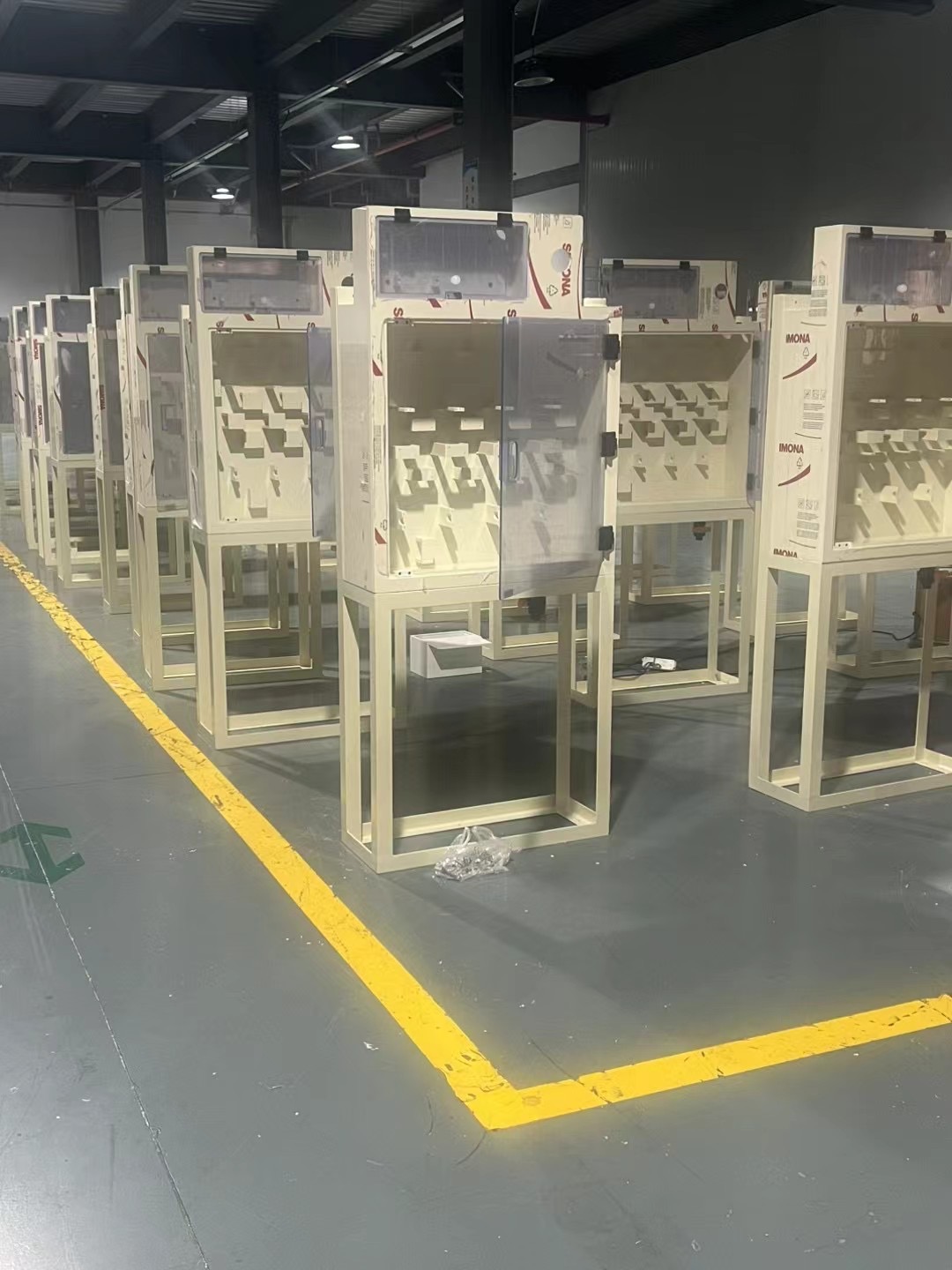

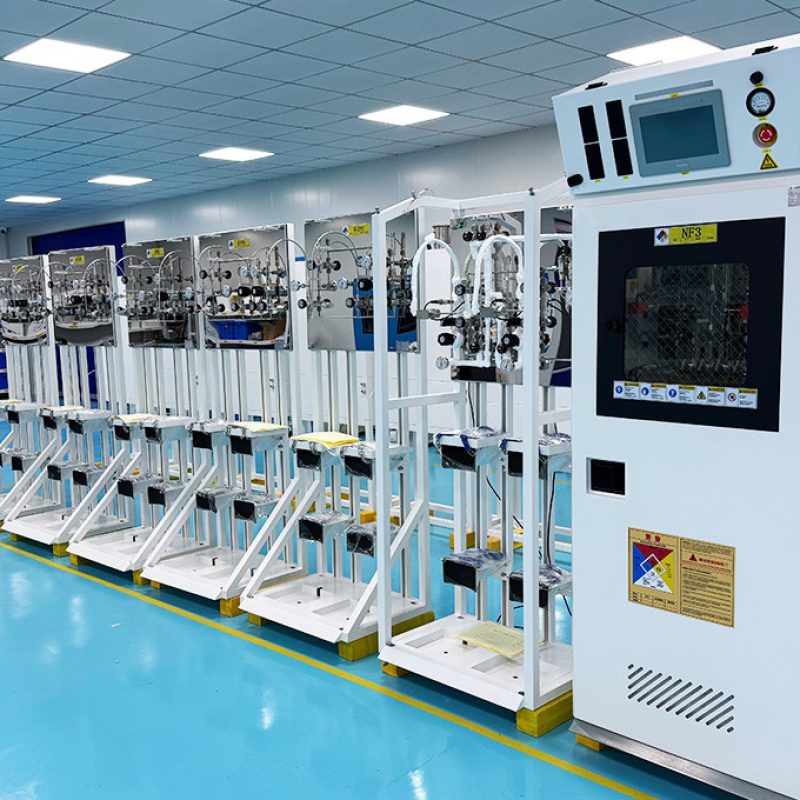

Main Components of a Custom Specialty Gas Cabinet

A professionally engineered gas cabinet integrates multiple precision components.

Gas Cylinder Compartment

The cabinet houses one or more gas cylinders securely using heavy-duty cylinder restraints.

Features include:

• Stainless steel construction
• Anti-corrosion coating
• Cylinder brackets
• Earth grounding
• Ventilation openings

Pressure Regulators

High-purity pressure regulators reduce cylinder pressure while maintaining stable outlet pressure.

Important characteristics include:

• Low internal surface roughness
• Minimal dead space
• High leak integrity
• Stable pressure control

Materials commonly include:

• 316L VIM-VAR stainless steel
• Hastelloy
• Monel
• Nickel alloys

High Purity Valves

Manual and pneumatic diaphragm valves provide contamination-free gas isolation.

Features include:

• Metal-to-metal sealing
• Orbital welded connections
• Low particle generation
• Long service life

Pressure Gauges and Sensors

Real-time pressure monitoring ensures stable gas delivery.

Integrated sensors provide:

• Cylinder pressure
• Line pressure
• Differential pressure
• Alarm notifications

Gas Detection System

Continuous monitoring detects hazardous gas leaks before dangerous concentrations develop.

Common detector types include:

• Toxic gas detectors
• Combustible gas detectors
• Oxygen deficiency monitors
• Multi-gas sensors

Automatic actions may include:

• Valve shutdown
• Alarm activation
• Exhaust fan operation
• Emergency interlock

PLC Control System

Modern gas cabinets feature intelligent PLC control systems.

Functions include:

• Automatic valve sequencing
• Pressure monitoring
• Alarm management
• Cylinder changeover
• Communication with factory systems

Human-machine interfaces (HMI) provide operators with intuitive control and system status visualization.

Automatic Gas Changeover Systems

Continuous production requires uninterrupted gas supply.

Automatic changeover systems enable seamless switching between primary and reserve cylinders.

Advantages include:

• Zero production interruption
• Stable pressure
• Improved productivity
• Reduced operator intervention
• Enhanced safety

Automatic manifold systems are especially valuable in semiconductor fabs operating 24/7.

Materials for Ultra-High Purity Applications

Material selection directly impacts gas purity.

Premium gas cabinets commonly utilize:

• 316L electropolished stainless steel
• VIM-VAR stainless steel
• Orbital welded tubing
• High purity diaphragm valves
• Metal gasket face seal fittings (VCR type)

Electropolished internal surfaces reduce:

• Particle generation
• Moisture adsorption
• Chemical reactions
• Surface corrosion

Typical internal surface roughness:

Ra ≤ 10 μin (0.25 μm)

High-end semiconductor systems may require:

Ra ≤ 5 μin

Safety Features of Specialty Gas Cabinets

Safety remains the highest priority in hazardous gas management.

Modern specialty gas cabinets integrate multiple protective functions.

Automatic Emergency Shutdown

If abnormal conditions occur, the system automatically:

• Closes pneumatic valves
• Isolates gas cylinders
• Activates alarms
• Starts emergency ventilation

Fire Detection

Optional fire detection systems trigger emergency shutdown procedures when elevated temperatures are detected.

Ventilation System

Continuous airflow prevents hazardous gas accumulation inside the cabinet.

Negative pressure design keeps leaks contained within the enclosure.

Interlock Protection

Gas cabinets communicate with:

• Process tools
• Exhaust systems
• Building Management Systems (BMS)
• Emergency shutdown systems
• Gas monitoring systems

Interlocks prevent unsafe operating conditions.

Audible and Visual Alarms

Operators receive immediate notification of:

• Gas leaks
• Pressure abnormalities
• Power failures
• Sensor faults
• Door opening
• Emergency shutdown

Customization Options

Every manufacturing facility has unique process requirements.

Custom specialty gas cabinets may be configured with:

Single Cylinder Cabinets

Suitable for:

• Research laboratories
• Pilot production
• Small-volume processes

Dual Cylinder Cabinets

Provide automatic cylinder switching for continuous production.

Ideal for:

• Semiconductor fabrication
• Pharmaceutical manufacturing
• Continuous chemical processing

Multiple Gas Configurations

Customized manifolds support:

• Multiple gas types
• Mixed gas systems
• Dedicated process lines

PLC Brand Selection

Customers may choose:

• Siemens
• Allen-Bradley
• Mitsubishi
• Omron
• Schneider
• Delta

Communication Protocols

Available industrial communication interfaces include:

• Modbus RTU
• Modbus TCP
• Ethernet/IP
• PROFINET
• DeviceNet
• EtherCAT

Cabinet Dimensions

Dimensions can be customized according to:

• Cylinder size
• Cleanroom layout
• Facility space
• Maintenance accessibility

Compliance with International Standards

High-quality specialty gas cabinets comply with internationally recognized standards.

Common standards include:

• SEMI S2
• SEMI S6
• SEMI S18
• NFPA 55
• CGA Guidelines
• ISO 14644
• CE Certification
• UL Certification (optional)

Compliance ensures safe operation while simplifying global equipment deployment.

Benefits of Investing in a Custom Gas Cabinet

Compared with standard gas storage solutions, customized systems provide significant advantages.

Enhanced Safety

Integrated monitoring dramatically reduces accident risks.

Improved Gas Purity

Ultra-clean internal surfaces maintain gas quality throughout delivery.

Increased Production Yield

Stable gas pressure improves process consistency.

Reduced Downtime

Automatic cylinder changeover minimizes production interruptions.

Lower Maintenance Costs

High-quality components extend service life.

Easier System Integration

Custom designs seamlessly connect with existing gas delivery infrastructure.

Future Scalability

Modular architecture allows future process expansion.

Selecting the Right Gas Cabinet Manufacturer

Choosing an experienced manufacturer is essential for long-term reliability.

Consider the following factors:

• Expertise in high-purity gas systems
• Semiconductor industry experience
• Engineering customization capabilities
• In-house design and manufacturing
• Precision orbital welding technology
• High-purity component selection
• PLC automation expertise
• International certifications
• Factory testing procedures
• Global technical support

Manufacturers capable of providing complete engineering documentation, FAT (Factory Acceptance Testing), installation guidance, and after-sales support offer greater long-term value.

Future Trends in Specialty Gas Cabinet Technology

As Industry 4.0 transforms manufacturing, gas cabinet technology is becoming smarter and more connected.

Emerging innovations include:

• IoT-enabled remote monitoring
• Cloud-based diagnostics
• Predictive maintenance powered by AI
• Digital twin simulation
• Real-time gas consumption analytics
• Energy-efficient control systems
• Integrated cybersecurity for industrial networks
• Automated compliance reporting

These advancements help manufacturers reduce operating costs, improve equipment uptime, and enhance process reliability while supporting intelligent factory management.

Conclusion

A Custom Specialty Gas Cabinet is far more than a storage enclosure—it is the heart of a High Purity Gas Delivery System, ensuring the safe, stable, and contamination-free supply of specialty gases for mission-critical manufacturing processes. By integrating precision pressure control, ultra-clean materials, intelligent automation, advanced leak detection, and comprehensive safety interlocks, these systems protect personnel, preserve gas purity, and maximize production efficiency.

Whether deployed in semiconductor fabrication, pharmaceutical production, biotechnology laboratories, LED manufacturing, or solar cell facilities, a well-designed custom gas cabinet delivers measurable benefits in safety, reliability, compliance, and long-term operational performance. As manufacturing technologies continue to demand higher purity and greater automation, investing in a fully customized, standards-compliant specialty gas cabinet is a strategic decision that supports higher yields, lower maintenance costs, and sustainable growth for advanced industrial operations.
