Best Liquid Chemical Cabinets for Acid, Solvent, and CMP Slurry Handling

Introduction

Modern semiconductor manufacturing, photovoltaic production, advanced laboratories, pharmaceutical facilities, and precision chemical processing all depend on the safe storage and controlled distribution of hazardous liquid chemicals. From concentrated acids and flammable solvents to abrasive CMP (Chemical Mechanical Planarization) slurries, every chemical requires dedicated handling equipment designed to maintain safety, purity, operational efficiency, and regulatory compliance.

Liquid chemical cabinets have become an essential component of automated chemical delivery systems. Rather than serving as simple storage enclosures, today’s high-performance liquid chemical cabinets integrate leak detection, pressure monitoring, ventilation, automatic shutdown functions, chemical compatibility, and intelligent control systems that significantly reduce operational risks while improving manufacturing productivity.

Selecting the best liquid chemical cabinet requires understanding the characteristics of different chemicals, compatibility of construction materials, automation level, environmental requirements, and future production expansion.

This article explores the key design principles, applications, safety features, and selection criteria for liquid chemical cabinets designed specifically for acid chemicals, flammable solvents, and CMP slurry handling.

What Is a Liquid Chemical Cabinet?

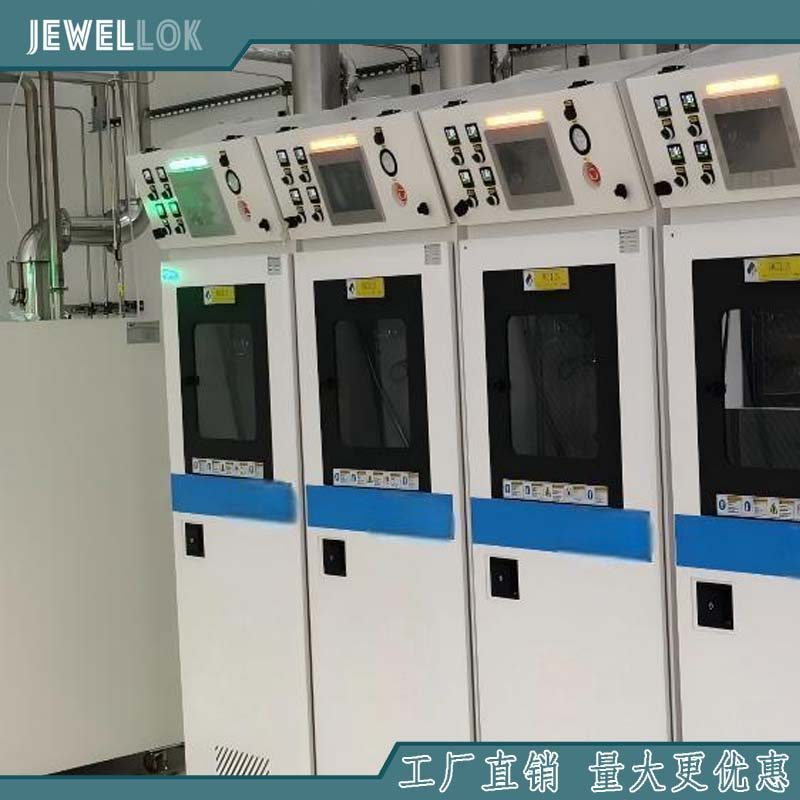

A liquid chemical cabinet is an enclosed engineered system designed to safely store, monitor, and distribute hazardous process chemicals used in industrial manufacturing. Unlike conventional storage cabinets, chemical cabinets actively control chemical delivery while protecting operators and production equipment.

A typical liquid chemical cabinet includes:

• Chemical storage compartment
• Double-contained piping
• Pneumatic or electric valves
• Leak detection sensors
• Pressure monitoring instruments
• Flow control devices
• Automatic emergency shutoff
• Ventilation interfaces
• PLC control system
• Human Machine Interface (HMI)
• Alarm and monitoring systems

The cabinet acts as the interface between chemical containers and downstream process equipment while minimizing operator exposure.

Why Specialized Cabinets Are Necessary

Different process chemicals exhibit unique physical and chemical characteristics.

Examples include:

Acid Chemicals

Common semiconductor acids include:

• Sulfuric Acid (H₂SO₄)
• Hydrofluoric Acid (HF)
• Hydrochloric Acid (HCl)
• Nitric Acid (HNO₃)
• Phosphoric Acid (H₃PO₄)

These chemicals are highly corrosive and require corrosion-resistant wetted materials.

Organic Solvents

Typical solvents include:

• IPA (Isopropyl Alcohol)
• Acetone
• PGMEA
• Ethanol
• Methanol
• NMP

Solvents present fire hazards due to low flash points and require explosion prevention measures and ventilation.

CMP Slurries

CMP slurry is widely used during semiconductor wafer polishing.

Characteristics include:

• Abrasive nanoparticles
• High solid content
• Sedimentation tendency
• High viscosity
• Sensitive particle size distribution

CMP slurry cabinets require specialized circulation systems that prevent particle settling while maintaining stable flow.

Applications Across Multiple Industries

Liquid chemical cabinets are widely used in:

Semiconductor Manufacturing

• Wet benches
• Etching tools
• Cleaning equipment
• CMP systems
• Photoresist coating
• Chemical mechanical polishing
• Wafer cleaning

Flat Panel Display Manufacturing

Chemical cabinets supply:

• Etchants
• Cleaning chemicals
• Developers
• Photoresists

Solar Cell Manufacturing

Photovoltaic production requires:

• HF
• HNO₃
• KOH
• Cleaning agents
• Surface treatment chemicals

Pharmaceutical Industry

Applications include:

• High-purity solvents
• Process acids
• Cleaning chemicals
• Buffer solutions

Chemical Laboratories

Research facilities require safe storage and delivery of:

• Analytical reagents
• Corrosive liquids
• Organic solvents
• High-purity chemicals

Essential Design Features

1. Chemical Compatibility

Material selection is the foundation of cabinet reliability.

Typical construction materials include:

For Acid Chemicals

• PVDF
• PTFE
• PFA
• HDPE
• PP
• PTFE-lined tubing

These materials offer outstanding corrosion resistance.

For Solvents

Compatible materials include:

• Stainless Steel 316L
• PTFE
• PFA
• PVDF
• Viton seals
• Kalrez seals

Material compatibility must always be verified according to the chemical used.

For CMP Slurry

Slurry-compatible components should include:

• Smooth internal surfaces
• Low particle generation materials
• Wear-resistant pumps
• Anti-settling piping layouts

2. Leak Detection

Leak detection is one of the most important safety functions.

Modern systems typically incorporate:

• Bottom leak trays
• Optical leak sensors
• Conductivity sensors
• Chemical-specific sensors
• Continuous monitoring

When leakage is detected, the cabinet automatically:

• Stops chemical delivery
• Closes pneumatic valves
• Activates alarms
• Sends remote notifications

3. Ventilation System

Hazardous vapors must never accumulate inside the cabinet.

Ventilation systems provide:

• Continuous exhaust
• Negative pressure operation
• Vapor removal
• Corrosion reduction
• Improved operator safety

Airflow is typically connected to the facility exhaust system.

4. Double Containment

Most semiconductor facilities require double-contained piping.

Benefits include:

• Secondary leak protection
• Environmental protection
• Easier maintenance
• Compliance with semiconductor safety standards

Outer containment captures leakage from the primary process tubing.

5. Pressure Monitoring

Stable pressure ensures reliable chemical delivery.

Pressure sensors continuously monitor:

• Tank pressure
• Pump discharge pressure
• Process line pressure
• Differential pressure

Abnormal conditions trigger automatic alarms.

6. Flow Monitoring

Flow meters verify chemical supply.

Functions include:

• Flow verification
• Consumption monitoring
• Process optimization
• Batch recording
• Early blockage detection

Acid Chemical Cabinet Design

Acid cabinets require enhanced corrosion protection.

Typical features include:

• Polypropylene cabinet structure
• PVDF piping
• PTFE valves
• Acid-resistant pumps
• Corrosion-resistant sensors
• Chemical-resistant ventilation ducting

Hydrofluoric acid systems often require dedicated materials because HF attacks glass and many metals.

Proper segregation prevents incompatible chemicals from mixing.

Solvent Chemical Cabinet Design

Flammable solvent cabinets focus on ignition prevention.

Important design elements include:

• Explosion-proof electrical components
• Grounding systems
• Static discharge protection
• Ventilation monitoring
• Solvent-resistant seals
• Fire detection integration

Automatic shutdown minimizes fire risks if abnormal conditions occur.

CMP Slurry Cabinet Design

CMP slurry presents unique engineering challenges.

Unlike pure liquids, slurry contains abrasive particles that settle during storage.

Advanced slurry cabinets therefore include:

Continuous Circulation

Continuous recirculation maintains uniform particle distribution.

Gentle Pump Design

Low-shear pumps prevent particle damage while maintaining flow stability.

Dead-Leg-Free Piping

Eliminating stagnant areas reduces sediment buildup.

Precision Flow Control

Stable flow ensures consistent wafer polishing quality.

Particle Monitoring

Some advanced systems include particle concentration monitoring to improve process consistency.

Intelligent Automation

Modern liquid chemical cabinets increasingly support Industry 4.0 manufacturing.

Automation functions include:

• PLC control
• Recipe management
• Touchscreen HMI
• Automatic valve sequencing
• Chemical level monitoring
• Pump control
• Data logging
• Alarm history
• Remote diagnostics
• Ethernet communication

Integration with Manufacturing Execution Systems (MES) allows centralized monitoring.

Safety Features

High-end chemical cabinets integrate multiple layers of protection.

Common safety functions include:

• Emergency stop button
• Leak detection
• Over-pressure protection
• Low-pressure alarms
• Chemical level alarms
• Door interlock
• Ventilation monitoring
• Fire alarm interface
• Gas detection (when applicable)
• Automatic emergency shutdown

These systems greatly reduce the probability of chemical incidents.

Environmental Protection

Environmental regulations are becoming increasingly stringent.

Modern cabinets contribute to environmental sustainability by:

• Preventing chemical leaks
• Reducing vapor emissions
• Minimizing chemical waste
• Supporting chemical recycling
• Lowering maintenance requirements
• Improving chemical utilization efficiency

Many facilities also integrate spill containment systems beneath cabinets for additional protection.

Maintenance Considerations

Routine maintenance helps maximize equipment reliability.

Recommended maintenance tasks include:

• Inspect tubing and fittings
• Verify sensor calibration
• Test emergency shutdown
• Check ventilation airflow
• Clean leak trays
• Replace worn seals
• Inspect pumps
• Verify pressure accuracy
• Test communication systems
• Review alarm history

Preventive maintenance significantly reduces unexpected downtime.

Choosing the Best Liquid Chemical Cabinet

When selecting a cabinet, manufacturers should evaluate several technical factors.

Chemical Compatibility

Every wetted component must be compatible with the intended chemical.

Process Requirements

Determine:

• Required flow rate
• Operating pressure
• Temperature
• Purity level
• Chemical viscosity

Automation Level

Consider whether the system requires:

• Manual operation
• Semi-automatic control
• Fully automatic chemical delivery

Safety Standards

Verify compliance with applicable standards such as:

• SEMI guidelines
• FM approvals (where applicable)
• CE certification
• ISO 9001 quality management
• Local fire and environmental regulations

Future Expansion

Modular cabinet designs simplify future upgrades as production capacity increases.

Benefits of High-Quality Liquid Chemical Cabinets

Investing in engineered liquid chemical cabinets offers numerous advantages.

Enhanced Safety

Multiple protection systems minimize risks to personnel and facilities.

Improved Chemical Purity

High-purity materials reduce contamination during chemical transfer.

Higher Productivity

Automated operation reduces manual intervention and increases production efficiency.

Reduced Maintenance Costs

Reliable components extend service life and lower operating expenses.

Better Process Stability

Stable pressure and flow improve manufacturing consistency.

Regulatory Compliance

Proper cabinet design supports compliance with environmental and occupational safety requirements.

Lower Total Cost of Ownership

Although premium systems require a higher initial investment, improved reliability, reduced downtime, and longer equipment life typically result in lower lifetime operating costs.

Future Trends in Liquid Chemical Cabinet Technology

As semiconductor technology advances toward smaller process nodes and higher production efficiency, liquid chemical cabinets continue to evolve.

Emerging trends include:

• AI-assisted predictive maintenance
• Digital twin integration for process simulation
• IoT-enabled remote monitoring
• Real-time chemical consumption analytics
• Automatic inventory management
• Smart leak prediction algorithms
• Enhanced cybersecurity for connected equipment
• Energy-efficient pumps and control systems
• Modular designs for rapid deployment
• Greater compatibility with ultra-high-purity chemical processes

These innovations enable manufacturers to improve operational efficiency while meeting increasingly demanding safety, environmental, and quality standards.

Conclusion

Liquid chemical cabinets are no longer simple storage enclosures—they are intelligent, safety-critical systems that play a central role in modern chemical handling operations. Whether managing highly corrosive acids, flammable organic solvents, or particle-sensitive CMP slurries, the right cabinet ensures safe storage, precise chemical delivery, and uninterrupted production.

The best liquid chemical cabinets combine chemically compatible materials, advanced leak detection, robust ventilation, intelligent automation, and comprehensive safety interlocks to protect personnel, equipment, and the environment. For industries such as semiconductor manufacturing, photovoltaics, pharmaceuticals, and advanced research, these systems contribute directly to higher process stability, improved product quality, and lower operating costs.

As manufacturing continues to embrace digitalization and automation, next-generation liquid chemical cabinets will deliver even greater levels of intelligence, predictive maintenance, and remote management. Choosing a well-engineered, scalable, and standards-compliant solution today not only addresses current production requirements but also provides a strong foundation for future expansion, making it a strategic investment for any facility handling hazardous liquid chemicals.
