Semiconductor Gas Cabinet Manufacturer and Supplier for Cleanroom Applications

Semiconductor Gas Cabinet Manufacturer and Supplier for Cleanroom Applications

As semiconductor technology continues to evolve toward smaller process nodes and higher manufacturing precision, the demand for safe, reliable, and ultra-high purity (UHP) gas delivery systems has become increasingly important. Semiconductor fabrication facilities rely on hundreds of specialty gases during critical manufacturing processes such as photolithography, chemical vapor deposition (CVD), atomic layer deposition (ALD), etching, ion implantation, oxidation, and cleaning. Many of these gases are toxic, corrosive, flammable, pyrophoric, or inert, requiring highly engineered containment and delivery solutions.

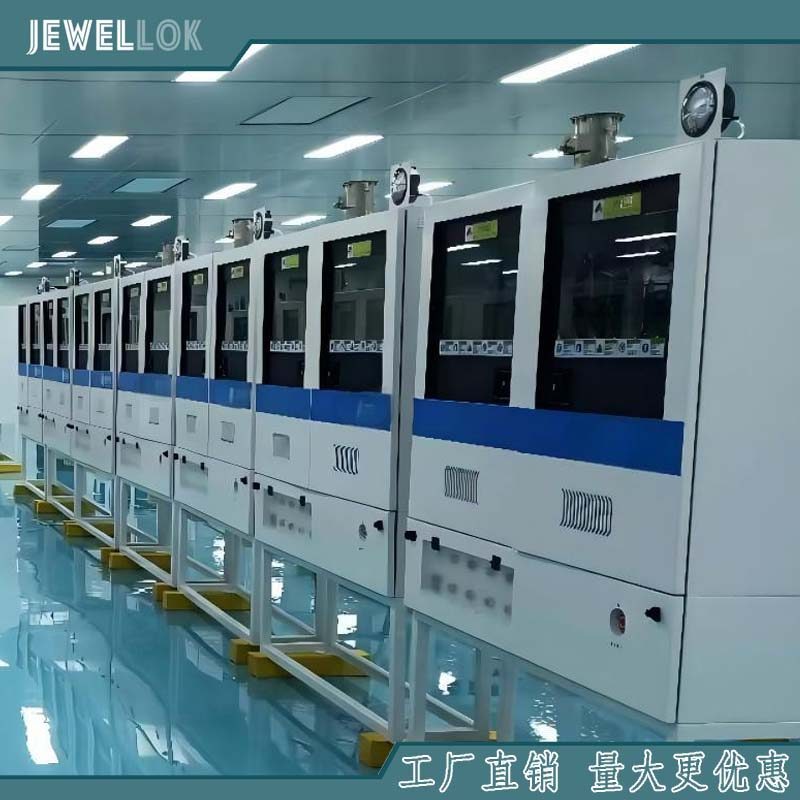

A semiconductor gas cabinet serves as the primary safety enclosure for storing, monitoring, and controlling hazardous process gases before they are supplied to production equipment. Designed specifically for cleanroom environments, modern gas cabinets combine advanced mechanical engineering, automated control systems, leak detection technologies, emergency shutdown functions, and ultra-high purity gas components into a single integrated platform.

Choosing an experienced semiconductor gas cabinet manufacturer and supplier ensures not only regulatory compliance but also stable gas delivery, improved process consistency, enhanced operator safety, and lower maintenance costs.

What Is a Semiconductor Gas Cabinet?

A semiconductor gas cabinet is a fully enclosed gas management system that safely houses one or more compressed gas cylinders while providing precise pressure regulation and controlled gas distribution to semiconductor process tools.

Unlike ordinary industrial gas cabinets, semiconductor-grade systems are specifically engineered to maintain ultra-high purity gas integrity while preventing contamination and minimizing particle generation inside cleanroom facilities.

Typical applications include:

• Semiconductor wafer fabrication
• MEMS manufacturing
• LED production
• Solar photovoltaic manufacturing
• Compound semiconductor production
• Display panel manufacturing
• Pharmaceutical cleanrooms
• Research laboratories
• University nanotechnology centers

These cabinets isolate hazardous gases from personnel while maintaining continuous gas supply during manufacturing operations.

Importance of Gas Cabinets in Semiconductor Manufacturing

Modern semiconductor fabs consume dozens of specialty gases throughout the production process. Even microscopic contamination or unstable gas pressure can directly impact wafer yield.

Gas cabinets provide several essential functions:

Personnel Safety

Hazardous gases such as:

• Silane (SiH₄)
• Ammonia (NH₃)
• Chlorine (Cl₂)
• Hydrogen Chloride (HCl)
• Boron Trichloride (BCl₃)
• Arsine (AsH₃)
• Phosphine (PH₃)

can present serious safety risks if released.

Gas cabinets continuously monitor leaks while automatically activating emergency shutdown procedures when abnormal conditions are detected.

Ultra-High Purity Gas Delivery

Semiconductor processes demand gas purity levels exceeding 99.9999% (6N) or even 99.999999% (8N).

Gas cabinets minimize contamination through:

• Orbital welded tubing
• Electropolished 316L stainless steel
• Metal diaphragm valves
• VCR face seal fittings
• Cleanroom assembly procedures
• Particle-free internal surfaces

This ensures stable process gas quality from cylinder to production equipment.

Stable Pressure Control

Many semiconductor processes require extremely stable gas pressure.

Integrated pressure control assemblies include:

• High-pressure regulators
• Line regulators
• Pressure transducers
• Digital pressure monitoring
• Automatic pressure adjustment

Stable gas flow improves process repeatability and wafer uniformity.

Major Components of a Semiconductor Gas Cabinet

A modern semiconductor gas cabinet integrates multiple precision-engineered subsystems.

Gas Cylinder Enclosure

The cabinet provides a sealed enclosure constructed from powder-coated steel or stainless steel.

Features include:

• Corrosion resistance
• Fire resistance
• Double-door access
• Viewing windows
• Automatic door interlocks

The enclosure prevents accidental gas exposure while simplifying cylinder replacement.

Pressure Control System

Pressure control assemblies regulate gas pressure from the cylinder to the process tool.

Common components include:

• Cylinder regulators
• Line regulators
• Pressure gauges
• Pressure sensors
• Relief valves
• Shutoff valves

High-performance pressure regulation ensures consistent gas delivery.

Gas Detection System

Continuous gas monitoring is one of the most important safety functions.

Gas detectors may monitor:

• Toxic gases
• Flammable gases
• Oxygen concentration
• Hydrogen
• Ammonia
• Chlorine
• Silane

Leak detection immediately activates alarms and emergency shutdown functions.

Automatic Shutoff Valves

Normally closed pneumatic valves automatically isolate gas flow during:

• Leak detection
• Fire alarms
• Earthquakes
• Power failures
• Emergency stop activation

Fast response significantly reduces potential hazards.

PLC Control System

Modern gas cabinets utilize industrial PLC controllers with touchscreen HMI interfaces.

The control system manages:

• Pressure monitoring
• Valve sequencing
• Alarm logging
• Leak detection
• Gas usage monitoring
• Purge cycles
• System diagnostics

Ethernet communication allows integration with fab-wide monitoring systems.

Purge System

Before cylinder replacement, hazardous gases must be safely removed.

Automatic purge systems typically use:

• High-purity nitrogen
• Vacuum evacuation
• Multiple purge cycles
• Automatic sequencing

Proper purging minimizes residual gas exposure.

Cleanroom Design Requirements

Gas cabinets installed inside semiconductor cleanrooms must meet stringent cleanliness standards.

Key design considerations include:

Low Particle Generation

Internal surfaces are carefully polished to reduce particle shedding.

Mechanical motion inside the cabinet is minimized to maintain cleanroom integrity.

Electropolished Stainless Steel

Most gas wetted components use:

• 316L stainless steel
• Electropolished tubing
• Surface roughness below Ra 0.25 μm

Smooth surfaces reduce particle adhesion while improving corrosion resistance.

Orbital Welding

Manual welding introduces contamination and inconsistencies.

Orbital welding provides:

• Uniform weld quality
• Minimal dead volume
• Excellent leak tightness
• Improved cleanliness

Each weld is inspected and documented.

Helium Leak Testing

Every gas line undergoes helium mass spectrometer leak testing.

Typical acceptance criteria:

Less than:

1 × 10⁻⁹ atm·cc/sec

This ensures reliable long-term sealing performance.

Gas Cabinet Configurations

Different semiconductor processes require different cabinet designs.

Single Cylinder Gas Cabinet

Suitable for:

• Small laboratories
• R&D facilities
• Pilot production
• Low gas consumption

Advantages include lower cost and simplified maintenance.

Dual Cylinder Gas Cabinet

Allows automatic cylinder changeover without interrupting production.

Benefits include:

• Continuous gas supply
• Higher productivity
• Reduced downtime
• Improved process stability

Dual-cylinder systems are widely used in semiconductor fabs.

Automatic Changeover Cabinet

These advanced systems automatically switch to a backup cylinder when the primary cylinder becomes depleted.

Advantages include:

• No operator intervention
• Continuous manufacturing
• Higher equipment utilization
• Reduced production interruptions

Safety Features

Safety remains the highest priority in semiconductor gas handling.

Advanced gas cabinets include:

• Toxic gas detectors
• Smoke detectors
• UV flame sensors
• Automatic fire suppression interfaces
• Emergency stop buttons
• Ventilation monitoring
• Pressure alarms
• Flow alarms
• Door interlocks
• Earthquake sensors
• Exhaust monitoring
• Gas cabinet purge verification

These multiple safety layers help protect personnel, equipment, and production facilities.

Applications Across Semiconductor Manufacturing

Gas cabinets support virtually every semiconductor manufacturing process.

Typical applications include:

Chemical Vapor Deposition (CVD)

Precise delivery of silane, ammonia, and specialty precursor gases.

Atomic Layer Deposition (ALD)

Accurate control of ultra-low gas flow rates for atomic-scale film growth.

Plasma Etching

Delivery of fluorine-based and chlorine-based process gases.

Ion Implantation

Safe handling of highly toxic dopant gases such as arsine and phosphine.

Diffusion Furnaces

Stable gas control for oxidation and diffusion processes.

Wafer Cleaning

Delivery of process gases for plasma cleaning systems.

Benefits of Working with a Professional Manufacturer

Selecting an experienced semiconductor gas cabinet supplier provides long-term operational advantages.

Engineering Expertise

Professional manufacturers understand:

• Semiconductor process requirements
• International safety standards
• Ultra-high purity gas systems
• Cleanroom installation practices

Custom engineering ensures compatibility with customer production lines.

Quality Manufacturing

Reliable suppliers maintain strict quality control throughout production.

Manufacturing processes typically include:

• CNC machining
• Precision tube bending
• Orbital welding
• Electropolishing
• Cleanroom assembly
• Functional testing
• Leak testing
• Factory acceptance testing (FAT)

Every cabinet undergoes comprehensive inspection before shipment.

Custom Design Capability

Every semiconductor fab has unique gas delivery requirements.

Manufacturers can customize:

• Cabinet dimensions
• Number of gas cylinders
• Gas types
• Pressure ranges
• PLC programming
• HMI interface
• Communication protocols
• Exhaust connections
• Alarm configurations

Custom solutions maximize production efficiency.

Global Compliance

Professional suppliers design systems according to international standards such as:

• SEMI standards
• CE requirements
• ISO quality systems
• NFPA guidelines
• Local electrical regulations
• Cleanroom engineering specifications

Compliance simplifies facility approval and project acceptance.

Maintenance Recommendations

Routine maintenance helps ensure reliable long-term operation.

Recommended inspections include:

• Leak testing
• Gas detector calibration
• Valve operation verification
• Pressure regulator inspection
• PLC alarm testing
• Exhaust airflow measurement
• Filter replacement
• Sensor calibration
• Emergency shutdown verification

Preventive maintenance minimizes unexpected downtime while extending equipment life.

Future Trends in Semiconductor Gas Cabinets

As semiconductor manufacturing advances toward 2 nm processes and beyond, gas cabinet technology continues to evolve.

Emerging trends include:

• AI-assisted predictive maintenance
• Industrial IoT connectivity
• Remote monitoring platforms
• Digital twin technology
• Real-time gas consumption analytics
• Smart preventive diagnostics
• Fully automated cylinder replacement
• Enhanced cybersecurity for industrial control systems
• Energy-efficient ventilation systems
• Advanced gas leak prediction algorithms

These innovations improve manufacturing efficiency while reducing operating costs.

Conclusion

Semiconductor gas cabinets are mission-critical components within modern cleanroom facilities, ensuring the safe storage, precise control, and ultra-high purity delivery of specialty process gases used throughout semiconductor manufacturing. From protecting personnel against hazardous gas exposure to maintaining stable process conditions for advanced wafer fabrication, these systems play an essential role in maximizing production yield, operational safety, and equipment reliability.

Partnering with an experienced semiconductor gas cabinet manufacturer and supplier provides access to high-quality engineering, customized system design, advanced automation, rigorous quality testing, and comprehensive technical support. Whether supporting research laboratories, pilot production lines, or high-volume semiconductor fabs, a well-designed gas cabinet delivers dependable performance, regulatory compliance, and long-term value for cleanroom operations.

As semiconductor technologies continue to advance, intelligent, automated, and highly integrated gas cabinet solutions will remain a cornerstone of safe, efficient, and future-ready semiconductor manufacturing.
