Ultra High Purity (UHP) diaphragm valves are the unsung heroes of the modern high-tech manufacturing era. These critical components are engineered to manage the flow of specialty, toxic, and corrosive gases without introducing even the slightest trace of contaminants or atmospheric leaks. As the global demand for semiconductors, photovoltaics, flat panel displays, and advanced biotechnology surges, the need for reliable UHP fluid control components has skyrocketed.

While Western and Japanese brands historically dominated the UHP market, Chinese manufacturers have made massive strides in precision engineering, electropolishing techniques, and cleanroom assembly. Today, several domestic Chinese manufacturers provide world-class UHP diaphragm valves that compete directly with global standards on cleanliness, leak integrity, and cycle life.

This technical article explores the critical metrics that define a premium UHP diaphragm valve and reviews the top 5 manufacturers in China leading this specialized field.

To appreciate the manufacturing excellence of the top providers, one must first understand the rigorous technical demands placed on UHP diaphragm valves. Unlike standard industrial valves, UHP valves must achieve parts-per-billion (ppb) or even parts-per-trillion (ppt) cleanliness levels.

1. Metal-to-Metal Diaphragm Seals
To eliminate the outgassing risks associated with elastomeric or polymer O-rings, UHP valves utilize thin, flexible diaphragms made from highly resilient alloys like Hastelloy® C-22 or Elgiloy® (cobalt-chromium-nickel alloy). These diaphragms are clamped directly against the valve body to form a true hermetic seal.

2. Springless Design and Low Dead Volume
Traditional valves have internal springs and cavities where moisture and micro-particles can hide. UHP valves prioritize a “springless” flow path. This creates a highly swept, low dead-volume internal cavity that is easy to purge and guarantees rapid gas displacement.

3. Advanced Surface Treatments (Electropolishing)
The internal, gas-wetted surfaces must be incredibly smooth to prevent particle shedding and gas entrapment. Premium UHP valves are machined from bar stock 316L VIM/VAR (Vacuum Induction Melt/Vacuum Arc Remelt) stainless steel and then electropolished. This process reduces the surface roughness average (Ra) to 5–10 muin (0.13–0.25 muin).

Evaluating Chinese manufacturers in the UHP sector requires looking past basic fabrication. The leaders are defined by their cleanroom classifications, CNC machining precision, and helium leak-testing capabilities.

Below are the top 5 manufacturers in China pushing the boundaries of UHP gas delivery components.

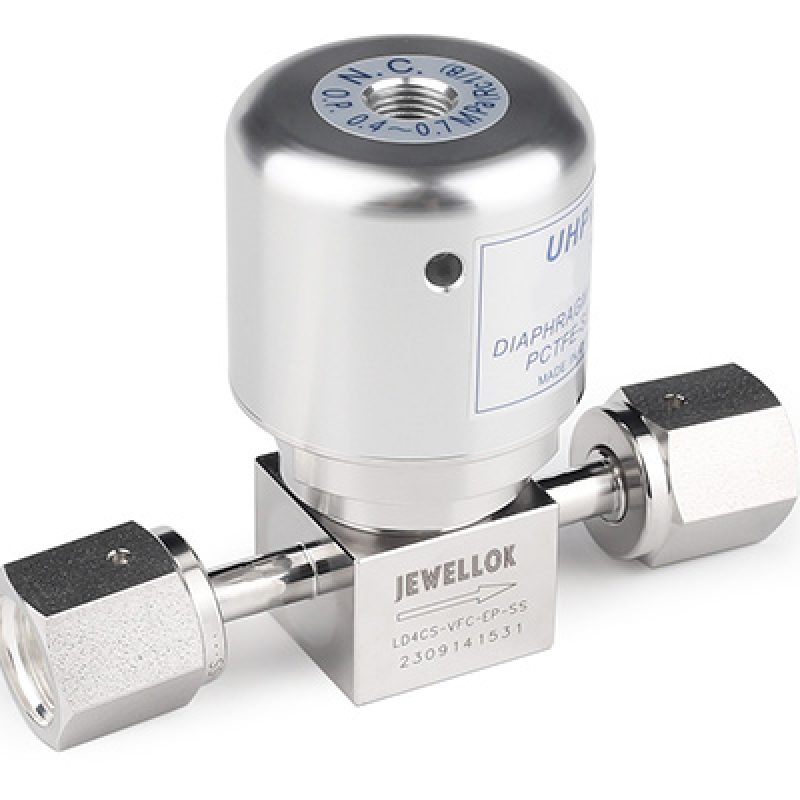

Headquartered in the high-tech hub of Shenzhen, Jewellok Technology has quickly established itself as a heavyweight in the field of UHP gas and chemical delivery systems. They don’t just manufacture components; they engineer entire gas distribution ecosystems.

• Technical Edge: Jewellok utilizes premium 316L stainless steel and high-end cobalt-based superalloys for their diaphragms. Their valves feature a localized dead-space-free design, making them exceptionally easy to purge during process gas changeovers.
• Product Range: They offer both high-pressure manual and pneumatic UHP diaphragm valves, alongside massive automated equipment like Valve Manifold Boxes (VMB) and automated gas cabinets.
• Why They Stand Out: Jewellok provides a strong balance between component manufacturing and full-scale engineering design. This gives them unique insight into how a diaphragm valve behaves within a complete macro-delivery system.

Shenzhen Wofly Technology Co., Ltd., widely known in the industry by its brand name AFK, is a premier specialist in high-purity gas equipment. Operating with rigorous quality control, AFK has become a go-to source for laboratory and semiconductor gas handling.

• Technical Edge: AFK utilizes Class 100 cleanrooms for the final cleaning, assembly, and packaging of their UHP valves. They boast severe helium leak integrity ratings strictly verified .
• Product Range: AFK produces a highly diverse range of 1/4-inch to 1/2-inch diaphragm valves with various end connections, including tube butt weld and highly reliable VCR face seal fittings.
• Why They Stand Out: AFK is heavily focused on R&D for analytical chemistry applications, ensuring their valves maintain baseline stability for gas chromatography (GC) and mass spectrometry (MS) carriers.

Though FITOK operates as a global entity with facilities in Germany, the UAE, and the USA, its massive manufacturing center in Shenzhen, China, plays a central role in its operations. FITOK is a powerhouse in the instrument valve and fitting market.

• Technical Edge: FITOK’s specialized semiconductor division handles their UHP product lines. They utilize highly controlled VIM/VAR raw materials to ensure minimal non-metallic inclusions in the steel.
• Product Range: Their DP and DQ series diaphragm valves offer manual, pneumatic, high-pressure, and low-pressure variations.
• Why They Stand Out: FITOK offers massive scale and advanced material traceability. Their rigorous in-house testing simulates millions of cycles to ensure continuous operation in high-frequency pulsing applications.

Hefei Goforward Technology Co., Ltd. (often operating under the brand Gofard) has carved out a highly respected niche in the Chinese high-purity market, particularly in the rapidly growing semiconductor clusters in eastern China.

• Technical Edge: Goforward places extreme focus on the electropolishing (EP) process, achieving mirror-like internal finishes that meet the stringent requirements of advanced node chip fabrication.
• Product Range: They specialize in tied-diaphragm and springless diaphragm valves, as well as ultra-clean bellows valves.
• Why They Stand Out: Goforward has established strong localized supply chains for tier-1 Chinese fab facilities, giving them immense practical data on how their valves perform under continuous chemical exposure.

Operating as a major player in the fluid control space, Hy-Lok’s operations in China have developed robust manufacturing pipelines specifically dedicated to the ultra-high purity market.

• Technical Edge: Hy-Lok leverages decades of fluid dynamics engineering to perfect the seat sealing mechanics of their diaphragm valves, reducing physical wear and extending valve lifespans.
• Product Range: They provide highly customizable multi-port diaphragm valves, which allow engineers to reduce the overall footprint and weld-count of gas panels.
• Why They Stand Out: Their strength lies in precise mechanical execution and massive catalog availability, making them a highly reliable bulk supplier for large-scale facility hook-ups.

The evolution of China’s UHP diaphragm valve manufacturing landscape reflects the country’s broader push toward precision high-tech independence. Manufacturers like Jewellok, AFK, FITOK, Goforward, and Hy-Lok are proving that precision surface finishes, zero-leak tolerance, and cleanroom assembly are no longer exclusive to legacy Western brands. When sourcing UHP diaphragm valves for critical processes, evaluating the specific cleanroom protocols, alloy grades, and leak-rate verifications of these top 5 manufacturers will ensure your gas systems remain perfectly pure.
