How Automatic Chemical Dispense Unit (CDU) Supports Bulk Chemical Distribution

In modern industrial environments—particularly in semiconductor manufacturing, pharmaceuticals, chemical processing, and advanced materials production—the safe, accurate, and efficient handling of bulk chemicals is critical. As production scales increase and process precision requirements become more stringent, manual chemical handling methods are no longer sufficient. This is where the Automatic Chemical Dispense Unit (CDU) plays a vital role.

A CDU is an integrated system designed to store, monitor, and precisely dispense chemicals from bulk containers to point-of-use (POU) systems. By automating chemical distribution, CDUs significantly enhance operational efficiency, safety, and process consistency. This article explores how CDUs support bulk chemical distribution, focusing on their design, working principles, key technologies, and advantages across industrial applications.

Overview of Bulk Chemical Distribution Challenges

Bulk chemical distribution involves transferring large volumes of chemicals—such as acids, solvents, bases, and specialty fluids—from storage tanks to various process tools. This process presents several challenges:

• Safety Risks: Many chemicals are hazardous, corrosive, or toxic, requiring controlled handling.
• Contamination Control: Even trace contamination can compromise product quality, especially in semiconductor fabrication.
• Precision Requirements: Advanced manufacturing processes demand highly accurate chemical dosing.
• Operational Efficiency: Manual handling leads to inconsistencies, downtime, and labor-intensive workflows.
• Regulatory Compliance: Strict environmental and safety regulations must be met.

Traditional systems often rely on manual intervention or semi-automated setups, which increase the risk of human error and inefficiency. CDUs address these challenges through automation and system integration.

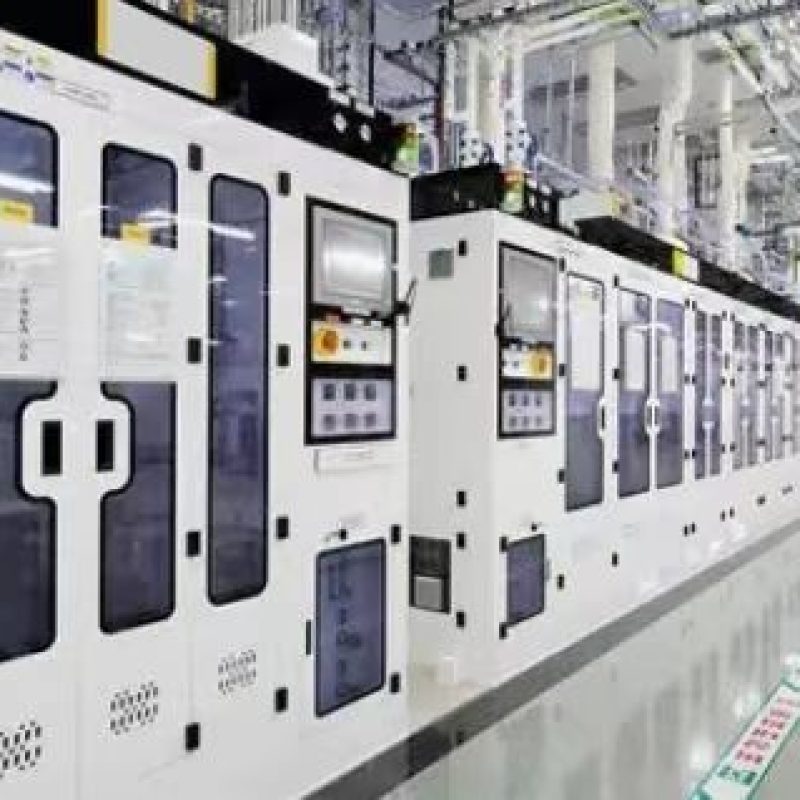

What is an Automatic Chemical Dispense Unit (CDU)?

An Automatic Chemical Dispense Unit is a centralized system that automates the transfer and dispensing of chemicals from bulk storage to downstream processes. It typically includes:

• Chemical storage tanks or bulk containers
• Pumps and flow control systems
• Valves and piping networks
• Sensors and instrumentation
• Control systems (PLC/SCADA)
• Safety and containment features

CDUs are designed to handle a wide range of chemicals, including high-purity fluids used in cleanroom environments. They are often integrated into facility-wide chemical distribution systems.

Working Principle of a CDU

The operation of a CDU can be broken down into several stages:

1. Chemical Storage and Supply

Chemicals are stored in bulk containers such as drums, intermediate bulk containers (IBCs), or large storage tanks. These containers are connected to the CDU via secure piping systems.

2. Transfer and Pressurization

Using pumps or pressurized gas systems (e.g., nitrogen), the CDU transfers chemicals from storage to the distribution lines. The system ensures stable pressure and flow conditions.

3. Flow Measurement and Control

Flow meters and control valves regulate the exact amount of chemical being dispensed. Advanced CDUs use mass flow controllers or Coriolis flow meters for high precision.

4. Distribution to Point-of-Use

Chemicals are delivered through a network of pipelines to various process tools or sub-systems. The CDU ensures consistent supply without fluctuations.

5. Monitoring and Feedback

Sensors continuously monitor parameters such as:

• Flow rate
• Pressure
• Temperature
• Chemical levels

The control system adjusts operations in real time to maintain optimal conditions.

Key Technologies in CDU Systems

1. Precision Flow Control

Accurate dispensing is achieved through advanced flow control technologies:

• Mass Flow Controllers (MFCs): Provide high-precision flow regulation.
• Coriolis Flow Meters: Measure mass flow directly, independent of fluid properties.
• Ultrasonic Flow Sensors: Non-invasive and suitable for high-purity applications.

These technologies ensure consistent chemical delivery, which is crucial for process repeatability.

2. Automated Control Systems

Modern CDUs are equipped with programmable logic controllers (PLCs) and supervisory control and data acquisition (SCADA) systems. These systems enable:

• Automated operation sequences
• Remote monitoring and control
• Data logging and analytics
• Alarm management

Integration with factory automation systems allows seamless coordination with production processes.

3. Chemical Compatibility and Material Selection

CDUs are constructed using materials compatible with aggressive chemicals, such as:

• PTFE (Polytetrafluoroethylene)
• PVDF (Polyvinylidene fluoride)
• Stainless steel (for certain applications)

Proper material selection prevents corrosion, contamination, and system failure.

4. Safety Systems

Safety is a core feature of CDU design. Key safety components include:

• Leak detection systems
• Pressure relief valves
• Emergency shut-off valves
• Secondary containment structures

These features minimize the risk of chemical exposure and environmental hazards.

5. Filtration and Purification

In high-purity applications, CDUs incorporate filtration systems to remove particles and impurities. This is especially important in semiconductor manufacturing, where contamination control is critical.

Advantages of Using CDU in Bulk Chemical Distribution

1. Enhanced Safety

By minimizing human interaction with hazardous chemicals, CDUs significantly reduce the risk of accidents, spills, and exposure. Automated systems handle the transfer and dispensing processes within enclosed environments.

2. Improved Accuracy and Consistency

CDUs deliver precise chemical volumes with minimal variation. This ensures consistent process conditions, leading to higher product quality and reduced defects.

3. Increased Operational Efficiency

Automation reduces manual labor and speeds up chemical handling processes. Continuous operation capabilities eliminate downtime associated with manual refilling and monitoring.

4. Reduced Chemical Waste

Accurate dispensing and real-time monitoring prevent overuse and spillage, leading to better resource utilization and cost savings.

5. Scalability

CDUs can be designed to support large-scale operations and can be expanded as production requirements grow. Modular designs allow easy integration of additional units.

6. Regulatory Compliance

Automated monitoring and data logging help facilities comply with environmental and safety regulations. Documentation and traceability are improved through digital records.

Applications of CDU Systems

1. Semiconductor Manufacturing

In semiconductor fabs, ultra-high-purity chemicals are used in processes such as etching, cleaning, and deposition. CDUs ensure contamination-free delivery and precise dosing.

2. Pharmaceutical Industry

Pharmaceutical production requires strict control over chemical handling to maintain product integrity. CDUs support accurate formulation and reduce contamination risks.

3. Chemical Processing Plants

Bulk chemicals are commonly used in large-scale chemical manufacturing. CDUs streamline distribution and improve process efficiency.

4. Electronics and Display Manufacturing

Processes such as PCB fabrication and LCD production rely on precise chemical usage. CDUs enhance consistency and reduce defects.

5. Water Treatment Facilities

CDUs are used to dispense treatment chemicals such as chlorine, acids, and coagulants, ensuring accurate dosing for effective water purification.

Design Considerations for CDU Implementation

When implementing a CDU system, several factors must be considered:

1. Chemical Properties

The physical and chemical characteristics of the fluid—such as viscosity, corrosiveness, and reactivity—determine system design and material selection.

2. Flow Rate Requirements

The system must be designed to handle the required flow rates while maintaining precision and stability.

3. Facility Layout

The placement of storage tanks, CDU units, and distribution lines affects system efficiency and maintenance accessibility.

4. Redundancy and Reliability

Critical processes require backup systems to ensure uninterrupted operation. Redundant pumps and control systems are often included.

5. Maintenance and Serviceability

Ease of maintenance is essential for long-term operation. Modular components and accessible design improve service efficiency.

Future Trends in CDU Technology

As industries continue to evolve, CDU systems are incorporating advanced technologies:

1. Smart Monitoring and IoT Integration

Real-time data collection and cloud connectivity enable predictive maintenance and performance optimization.

2. AI-Driven Process Optimization

Artificial intelligence can analyze operational data to improve efficiency, detect anomalies, and optimize chemical usage.

3. Sustainability Enhancements

CDUs are being designed to reduce energy consumption and minimize environmental impact through improved efficiency and waste reduction.

4. Miniaturization and Modularization

Compact and modular CDU designs allow flexible deployment in space-constrained environments.

Conclusion

The Automatic Chemical Dispense Unit (CDU) is a cornerstone technology in modern bulk chemical distribution systems. By automating the storage, transfer, and dispensing of chemicals, CDUs address key challenges related to safety, accuracy, efficiency, and compliance.

From semiconductor manufacturing to water treatment, CDUs enable industries to maintain high standards of quality and reliability while optimizing operational performance. As technology advances, the integration of smart systems, AI, and sustainable design will further enhance the capabilities of CDU systems.

In an era where precision and safety are paramount, the adoption of CDU technology is not just an operational upgrade—it is a strategic necessity for industries handling bulk chemicals.
