CVD Gas Precursor Delivery Solutions for Semiconductor and Coating Industries

Introduction

Chemical Vapor Deposition (CVD) is one of the most critical manufacturing technologies used in modern semiconductor fabrication and advanced industrial coating applications. From integrated circuits and MEMS devices to solar panels, optical coatings, and wear-resistant surfaces, CVD processes enable the precise deposition of thin films with exceptional uniformity, purity, and performance. At the center of every successful CVD process lies a highly reliable and precisely engineered gas precursor delivery system.

CVD gas precursor delivery systems are designed to safely store, transport, control, vaporize, and deliver reactive gases or liquid precursors into process chambers under tightly regulated conditions. These systems directly influence process stability, film quality, equipment uptime, yield, and operational safety. As semiconductor nodes continue shrinking and coating technologies demand increasingly sophisticated material properties, the requirements for gas delivery systems have become significantly more stringent.

This article explores the principles, components, challenges, and advanced solutions associated with CVD gas precursor delivery systems for semiconductor and coating industries.

Understanding CVD Gas Precursors

CVD processes involve the chemical reaction of gaseous precursor materials on heated substrates to form solid thin films. Depending on the application, precursors may exist as gases, volatile liquids, or solid compounds requiring vaporization before delivery.

Common semiconductor CVD precursors include:

• Silane (SiH4)
• Dichlorosilane (DCS)
• Tungsten Hexafluoride (WF6)
• Ammonia (NH3)
• Trimethylaluminum (TMA)
• Titanium Tetrachloride (TiCl4)
• Tetraethyl Orthosilicate (TEOS)

In coating industries, CVD precursors may include:

• Titanium Nitride precursors
• Chromium compounds
• Organometallic compounds
• Metal carbonyls
• Ceramic coating precursors

Many of these chemicals are highly reactive, toxic, corrosive, pyrophoric, or moisture-sensitive. Therefore, the delivery system must maintain ultra-high purity conditions while ensuring operator safety and process reliability.

Importance of Gas Precursor Delivery Systems

The quality of deposited films is directly linked to precursor flow stability and purity. Even slight variations in temperature, pressure, contamination, or flow rate can result in:

• Film thickness inconsistencies
• Particle contamination
• Reduced wafer yield
• Poor adhesion
• Defective coatings
• Process instability

An advanced CVD gas delivery system provides:

• Precise flow control
• Stable vaporization
• Consistent pressure regulation
• Contamination-free gas transport
• Safe chemical handling
• Real-time monitoring and automation

For advanced semiconductor manufacturing at sub-5nm technology nodes, ultra-high purity (UHP) gas delivery has become essential to maintain defect-free production environments.

Key Components of CVD Gas Precursor Delivery Systems

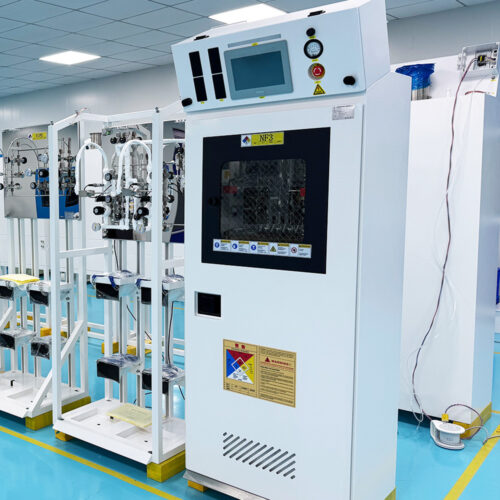

1. Gas Cabinets

Gas cabinets provide secure housing for hazardous gas cylinders and precursor containers. They are equipped with:

• Gas leak detectors
• Automatic shutoff valves
• Ventilation systems
• Fire suppression integration
• Emergency shutdown controls

In semiconductor fabs, gas cabinets must comply with strict international safety standards and local regulations.

2. Pressure Regulators

Pressure regulators reduce high cylinder pressure to stable operating levels suitable for process tools. High-performance regulators used in CVD systems typically feature:

• Stainless steel diaphragms
• Electropolished internal surfaces
• Low dead volume design
• High leak integrity
• Corrosion resistance

Ultra-high purity regulators help minimize particle generation and contamination.

3. Mass Flow Controllers (MFCs)

Mass Flow Controllers are critical for maintaining accurate gas flow rates into the deposition chamber. Advanced digital MFCs offer:

• High precision control
• Fast response time
• Multi-gas calibration
• Remote communication capability
• Self-diagnostic functions

Stable precursor flow is particularly important in Atomic Layer Deposition (ALD) and advanced plasma-enhanced CVD processes.

4. Vaporization Systems

Many liquid precursors require controlled vaporization before entering the process chamber. Vaporizer systems ensure stable conversion from liquid to vapor phase while avoiding condensation.

Key technologies include:

• Direct liquid injection (DLI)
• Heated bubblers
• Carrier gas-assisted vaporizers
• Flash vaporizers

Precise temperature management is essential to maintain vapor pressure stability.

5. Heated Gas Lines

Some precursor gases condense easily under lower temperatures. Heated delivery lines prevent condensation and maintain stable gas transport.

Features include:

• Uniform temperature distribution
• PID temperature control
• Insulated tubing assemblies
• High-purity stainless steel construction

Maintaining consistent line temperatures prevents particle formation and process interruption.

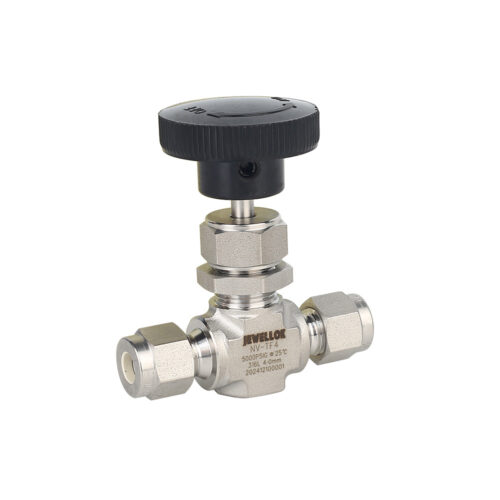

6. Valves and Manifolds

Diaphragm valves and welded manifolds are widely used in UHP gas systems. These components must provide:

• Zero internal leakage
• Minimal dead space
• Corrosion resistance
• High cycle life
• Cleanroom compatibility

Orbital welding techniques are commonly used to minimize contamination risks.

Ultra-High Purity Requirements in Semiconductor Manufacturing

Semiconductor fabrication environments demand extremely low contamination levels. Even trace impurities at parts-per-billion (ppb) levels can affect device performance.

UHP gas delivery systems are designed with:

• Electropolished 316L stainless steel tubing
• Surface roughness below 10 Ra
• Metal-to-metal sealing
• Helium leak testing
• Particle-free assembly processes
• Cleanroom manufacturing

Advanced purification technologies may also include:

• Gas purifiers
• Moisture traps
• Oxygen removal systems
• Particle filters

The entire system must maintain integrity throughout installation, operation, and maintenance.

Safety Challenges in CVD Precursor Handling

Many CVD precursor chemicals present severe hazards. Common risks include:

Toxicity

Gases such as arsine, phosphine, and diborane are highly toxic even at low concentrations.

Pyrophoric Behavior

Silane and certain organometallic compounds can spontaneously ignite upon exposure to air.

Corrosiveness

Halogen-containing precursors may corrode system components if improper materials are used.

Pressure Hazards

Compressed gas cylinders require robust pressure management and emergency isolation systems.

To address these risks, modern gas delivery systems incorporate:

• Automatic shutdown systems
• Gas detection sensors
• Redundant safety valves
• Ventilation monitoring
• PLC-based interlocks
• Exhaust gas scrubber integration

Safety engineering is now considered equally important as process performance.

Automation and Smart Control Technologies

Industry 4.0 and smart manufacturing are transforming gas delivery technologies. Modern systems increasingly integrate automation features such as:

• PLC control systems
• Remote monitoring
• Data logging
• Predictive maintenance
• Real-time diagnostics
• SCADA integration

Smart sensors can monitor:

• Flow rates
• Pressure fluctuations
• Temperature stability
• Gas purity
• Valve performance

Predictive maintenance algorithms help reduce downtime by identifying component degradation before failures occur.

Digitalization also improves traceability and process optimization across semiconductor fabs and coating production lines.

CVD Gas Delivery for Advanced Semiconductor Applications

Advanced Logic and Memory Devices

As chip geometries continue shrinking, precursor delivery precision becomes increasingly critical. Advanced nodes require:

• Atomic-scale film uniformity
• Extremely stable precursor pulses
• Rapid switching performance
• Ultra-clean delivery environments

ALD and low-pressure CVD systems heavily rely on highly responsive gas delivery components.

Compound Semiconductor Manufacturing

Gallium Nitride (GaN), Silicon Carbide (SiC), and III-V semiconductor production often use highly specialized precursors with strict thermal management requirements.

Gas delivery systems for compound semiconductors must address:

• Higher operating temperatures
• Corrosive chemistries
• Complex precursor mixtures
• Enhanced safety protocols

Semiconductor Packaging

Advanced packaging technologies such as TSV, fan-out packaging, and wafer-level packaging also require sophisticated deposition processes supported by reliable precursor delivery.

Applications in Industrial Coating Industries

Beyond semiconductor manufacturing, CVD precursor delivery systems are widely used in industrial coatings.

Tool Coatings

Titanium Nitride (TiN) and Diamond-Like Carbon (DLC) coatings improve:

• Wear resistance
• Surface hardness
• Corrosion resistance
• Tool lifespan

Stable precursor delivery ensures coating consistency across large production batches.

Optical Coatings

CVD coatings are used for:

• Anti-reflective layers
• Infrared optics
• Display technologies
• Precision lenses

Uniform precursor distribution is essential for optical performance.

Aerospace and Automotive Components

Protective ceramic and thermal barrier coatings help improve durability under extreme operating conditions.

These applications require robust high-temperature gas delivery systems capable of continuous industrial operation.

Material Selection for Gas Delivery Systems

Material compatibility is critical in precursor delivery design. Common materials include:

316L Stainless Steel

Widely used for its:

• Corrosion resistance
• Weldability
• UHP compatibility

Hastelloy

Suitable for highly corrosive chemicals and aggressive environments.

Nickel Alloys

Used in specialized high-temperature applications.

Fluoropolymer Components

Sometimes applied in low-pressure or highly reactive chemical environments.

Improper material selection can lead to corrosion, contamination, and catastrophic system failures.

Emerging Trends in CVD Gas Delivery Technology

Increased Use of ALD

Atomic Layer Deposition requires extremely precise precursor pulsing and rapid valve actuation.

Sustainable Manufacturing

Manufacturers are seeking systems that reduce:

• Gas waste
• Energy consumption
• Chemical emissions

AI-Driven Process Optimization

Artificial intelligence is increasingly being used to optimize gas flow stability and predictive maintenance.

Modular Gas Delivery Platforms

Modular system architectures simplify:

• Maintenance
• Scalability
• Process upgrades
• Tool integration

Enhanced Safety Compliance

Global semiconductor expansion is driving stricter safety and environmental standards worldwide.

Future Outlook

The future of CVD gas precursor delivery systems will be shaped by continued advances in semiconductor technology, materials science, and industrial automation. Emerging technologies such as AI chips, quantum computing, advanced displays, electric vehicles, and renewable energy systems will further increase demand for highly reliable thin-film deposition processes.

Gas delivery systems will continue evolving toward:

• Higher purity standards
• Greater automation
• Smarter diagnostics
• Improved sustainability
• Enhanced chemical compatibility
• Miniaturized high-performance components

Manufacturers capable of delivering fully integrated, ultra-clean, and intelligent gas handling solutions will play a critical role in the next generation of semiconductor and advanced coating production.

Conclusion

CVD gas precursor delivery systems serve as the foundation of modern semiconductor fabrication and advanced coating technologies. These systems must deliver exceptional precision, purity, safety, and reliability under increasingly demanding process conditions.

From gas cabinets and vaporizers to mass flow controllers and smart automation platforms, every component contributes directly to process stability and final product quality. As industries continue pushing toward smaller semiconductor nodes, more advanced materials, and higher production efficiency, the importance of sophisticated gas delivery solutions will only continue growing.

By combining ultra-high purity engineering, advanced automation, robust safety systems, and intelligent process control, modern CVD gas precursor delivery solutions are enabling the future of semiconductor manufacturing and industrial coating innovation.
