Semiconductor Grade UHP 316L Stainless Steel Ball Valves for Ultra-Clean Applications

Introduction

As semiconductor technology continues to advance toward smaller process nodes, higher wafer yields, and more sophisticated manufacturing techniques, the demand for ultra-high purity (UHP) fluid and gas delivery systems has never been greater. Every component within a semiconductor gas distribution system plays a crucial role in maintaining process stability, contamination control, and equipment reliability. Among these components, Semiconductor Grade UHP 316L Stainless Steel Ball Valves have become an indispensable solution for controlling high-purity gases and specialty chemicals in cleanroom environments.

Unlike conventional industrial ball valves, semiconductor-grade UHP ball valves are specifically engineered to eliminate particle generation, minimize outgassing, reduce dead volume, and resist corrosion from aggressive process gases. Manufactured from premium 316L stainless steel with electropolished internal surfaces, these valves provide exceptional cleanliness while maintaining long service life under demanding operating conditions.

This article explores the design, materials, manufacturing standards, applications, advantages, and selection criteria of UHP 316L stainless steel ball valves for ultra-clean semiconductor applications.

What Are Semiconductor Grade UHP Ball Valves?

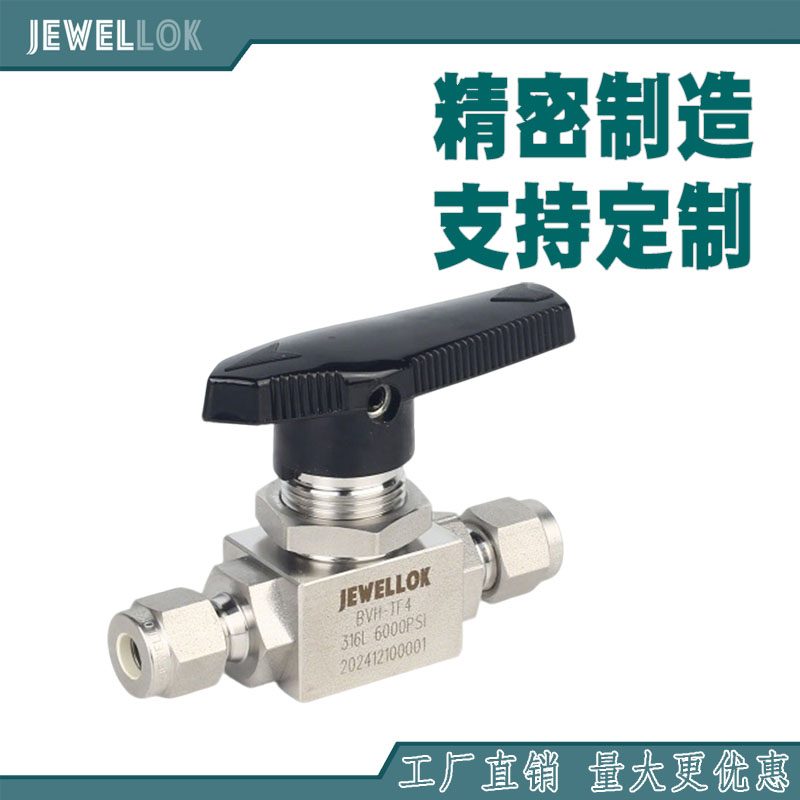

A Semiconductor Grade Ultra High Purity (UHP) Ball Valve is a precision-engineered flow control device specifically designed for transporting ultra-clean gases and chemicals used in semiconductor fabrication.

Unlike standard industrial valves, UHP ball valves are manufactured under strict cleanliness standards to prevent:

• Metallic contamination
• Moisture intrusion
• Organic contamination
• Particle generation
• Gas leakage
• Surface corrosion

Their primary function is to provide reliable on/off isolation while preserving the purity of process gases throughout the gas delivery system.

These valves are commonly integrated into:

• Bulk Gas Distribution Systems
• Gas Cabinets
• Valve Manifold Boxes (VMB)
• Valve Manifold Panels (VMP)
• Chemical Delivery Systems (CDS)
• High Purity Gas Panels
• Analytical Instrumentation
• Pharmaceutical Gas Systems
• Laboratory Gas Distribution Networks

Why 316L Stainless Steel Is the Preferred Material

Material selection directly determines valve performance in high-purity environments.

316L stainless steel has become the industry standard because of its excellent balance of corrosion resistance, mechanical strength, weldability, and cleanliness.

Typical chemical composition includes:

• Chromium: 16–18%
• Nickel: 10–14%
• Molybdenum: 2–3%
• Low Carbon Content (<0.03%)

The low carbon content minimizes carbide precipitation during welding, significantly improving corrosion resistance.

Key advantages include:

Superior Corrosion Resistance

Semiconductor processes involve highly corrosive gases such as:

• Hydrogen Chloride (HCl)
• Hydrogen Fluoride (HF)
• Chlorine (Cl₂)
• Ammonia (NH₃)
• Silane (SiH₄)
• Nitrogen Trifluoride (NF₃)

316L stainless steel offers excellent resistance to these chemicals under properly controlled operating conditions.

Low Particle Generation

Surface imperfections become sources of contamination.

Electropolished 316L stainless steel produces:

• Extremely smooth internal surfaces
• Reduced friction
• Lower particle shedding
• Improved cleanliness

This directly contributes to higher wafer yields.

Excellent Mechanical Strength

UHP valves operate under pressures ranging from vacuum to several thousand PSI.

316L stainless steel maintains excellent:

• Tensile strength
• Fatigue resistance
• Pressure resistance
• Thermal stability

making it suitable for continuous operation.

Electropolishing: The Foundation of Ultra-Clean Performance

Electropolishing is one of the defining characteristics of semiconductor-grade valves.

Unlike mechanical polishing, electropolishing removes microscopic peaks from the metal surface through electrochemical dissolution.

Typical surface finishes include:

• Ra ≤ 20 μin
• Ra ≤ 15 μin
• Ra ≤ 10 μin
• Ra ≤ 5 μin for critical applications

Benefits include:

• Reduced particle adhesion
• Improved corrosion resistance
• Easier cleaning
• Lower moisture retention
• Better passivation
• Reduced bacterial growth (pharmaceutical applications)

The mirror-like internal finish dramatically improves gas purity.

Key Design Features of Semiconductor UHP Ball Valves

Full-Port Flow Design

A full-port configuration minimizes pressure loss while allowing unrestricted gas flow.

Advantages include:

• Low pressure drop
• Reduced turbulence
• Minimal particle generation
• High flow efficiency

Bubble-Tight Shutoff

Leak integrity is essential in semiconductor manufacturing.

High-quality UHP ball valves provide:

• Bubble-tight sealing
• Helium leak rates below 1 × 10⁻⁹ atm·cc/sec
• Zero external leakage
• Reliable isolation

This prevents contamination from entering the gas system.

Dead Space Reduction

Dead volume traps moisture and contaminants.

Semiconductor-grade valves feature optimized internal geometries that:

• Minimize trapped gas
• Improve purge efficiency
• Accelerate gas changeover
• Reduce contamination risk

Precision Ball and Seat Design

The ball and seat assembly ensures smooth operation while maintaining long service life.

Seat materials commonly include:

• Modified PTFE
• PCTFE
• PEEK
• UHMWPE

Each material is selected based on chemical compatibility and operating temperature.

Anti-Blowout Stem

A safety stem design prevents accidental stem ejection under high pressure.

Benefits include:

• Improved operator safety
• Higher pressure integrity
• Longer service life

Locking Handle Options

Many semiconductor facilities require process validation and lockout procedures.

Optional locking handles help prevent unauthorized valve operation.

Manufacturing Standards

Semiconductor-grade valves undergo significantly stricter manufacturing procedures than industrial valves.

Typical manufacturing processes include:

CNC Precision Machining

High-precision CNC machining ensures:

• Tight dimensional tolerances
• Smooth sealing surfaces
• Consistent product quality

Orbital Weld Compatibility

Many UHP valves feature orbital weld ends that support:

• Automatic welding
• Minimal contamination
• Repeatable weld quality

Cleanroom Assembly

Assembly typically occurs inside ISO Class cleanrooms.

Cleanroom assembly prevents:

• Dust contamination
• Oil contamination
• Human-generated particles

Ultrasonic Cleaning

Components undergo multiple cleaning stages including:

• Degreasing
• Ultrasonic washing
• DI water rinsing
• High-purity drying

Nitrogen Packaging

Finished valves are packaged using:

• High-purity nitrogen
• Double vacuum bags
• Cleanroom packaging materials

This ensures valves remain contamination-free until installation.

Typical Technical Specifications

Although specifications vary among manufacturers, semiconductor-grade UHP ball valves generally offer:

Body Material

316L Stainless Steel

Surface Finish

Electropolished Ra ≤ 10 μin

Working Pressure

Vacuum to 3000 PSI

Temperature Range

-20°C to 200°C (depending on seat material)

Leak Rate

≤1 × 10⁻⁹ atm·cc/sec Helium

End Connections

• Tube Stub
• Butt Weld
• VCR
• Compression Tube Fittings
• Face Seal Fittings

Operation

• Manual
• Pneumatic
• Electric Actuated

Applications in Semiconductor Manufacturing

Gas Cabinets

Gas cabinets safely store hazardous process gases.

UHP ball valves isolate gas cylinders while enabling safe maintenance.

Bulk Specialty Gas Systems

Large-scale gas distribution systems require highly reliable shutoff valves to maintain uninterrupted gas supply.

Chemical Delivery Systems (CDS)

Chemical distribution systems handling acids and solvents rely on corrosion-resistant UHP valves to maintain chemical purity and ensure safe process control.

Wafer Fabrication Equipment

Critical semiconductor tools include:

• CVD Systems
• PVD Systems
• ALD Equipment
• Etching Systems
• Ion Implantation Equipment
• Lithography Equipment

Each system requires contamination-free gas delivery.

Process Gas Panels

Gas panels distribute multiple specialty gases while maintaining ultra-high purity throughout the production line.

Analytical Instruments

Semiconductor laboratories utilize UHP valves in:

• Gas chromatography
• Mass spectrometry
• Leak detection systems
• Process analyzers

Advantages Compared with Standard Industrial Ball Valves

Feature	Standard Valve	Semiconductor UHP Valve
Surface Finish	Machined	Electropolished
Cleanliness	Industrial	Semiconductor Grade
Particle Generation	Higher	Extremely Low
Leak Rate	Standard Industrial	Ultra-Low Helium Leak
Packaging	Standard	Cleanroom Double Bagged
Dead Volume	Larger	Minimized
Corrosion Resistance	Good	Excellent
Cleanroom Compatibility	Limited	Fully Compatible

Quality Testing and Inspection

Every semiconductor-grade valve undergoes comprehensive testing before shipment to ensure reliability and compliance with stringent industry requirements.

Common quality assurance procedures include:

• Positive Material Identification (PMI)
• Helium Mass Spectrometer Leak Testing
• Hydrostatic Pressure Testing
• Functional Cycle Testing
• Surface Roughness Measurement
• Dimensional Inspection
• Ferrite Content Analysis
• Cleanliness Verification
• Visual Inspection
• Packaging Inspection

Manufacturers often provide complete material traceability and inspection reports to support quality documentation.

Selecting the Right UHP Ball Valve

Choosing the appropriate valve requires evaluating several technical factors.

Gas Compatibility

Confirm compatibility with specialty gases such as:

• Hydrogen
• Nitrogen
• Oxygen
• Helium
• Argon
• Silane
• Chlorine
• Ammonia

Pressure Rating

Select a valve that exceeds the maximum operating pressure while providing an adequate safety margin.

Connection Type

Ensure compatibility with the existing gas delivery system, whether orbital weld tubing, face seal fittings, or compression fittings.

Surface Finish

Critical semiconductor applications generally require electropolished surfaces with Ra ≤ 10 μin or finer to reduce contamination risks.

Leakage Performance

Specify helium leak testing to verify extremely low internal and external leakage rates for high-purity gas service.

Automation Requirements

Consider manual, pneumatic, or electric actuation based on process automation and remote control needs.

Certification and Documentation

Look for manufacturers that can provide material certificates, leak test reports, surface finish records, and full production traceability.

Future Trends in UHP Ball Valve Technology

As semiconductor manufacturing continues to evolve toward advanced process nodes, UHP valve technology is also advancing to meet increasingly stringent cleanliness and reliability requirements.

Emerging developments include:

• Higher purity vacuum remelted 316L stainless steel
• Automated cleanroom manufacturing with enhanced traceability
• AI-assisted precision machining and quality inspection
• Digital documentation for Industry 4.0 manufacturing environments
• Smart valves with integrated sensors for pressure, temperature, and cycle monitoring
• Improved seat materials offering longer cycle life and broader chemical compatibility
• More compact valve designs for high-density gas distribution systems
• Enhanced electropolishing techniques for ultra-low surface roughness

These innovations help semiconductor manufacturers improve process consistency, reduce maintenance, and support the production of next-generation integrated circuits.

Conclusion

Semiconductor Grade UHP 316L Stainless Steel Ball Valves are essential components in modern ultra-high purity gas and chemical delivery systems. Their precision-engineered construction, electropolished internal surfaces, exceptional corrosion resistance, and ultra-low leak performance ensure reliable operation in the most demanding cleanroom environments.

From gas cabinets and valve manifold panels to chemical delivery systems and wafer fabrication equipment, these valves play a vital role in safeguarding process purity, minimizing contamination, and maximizing production yield. By selecting high-quality UHP ball valves manufactured under strict cleanroom standards and validated through comprehensive testing, semiconductor manufacturers can achieve superior process reliability, lower maintenance costs, and long-term operational excellence.

As semiconductor technologies continue to push the boundaries of precision and miniaturization, the importance of ultra-clean, high-performance UHP 316L stainless steel ball valves will only continue to grow, making them a critical investment for advanced semiconductor fabrication facilities worldwide.
