Advanced Chemical Delivery Module Solutions for Semiconductor Manufacturing

As semiconductor technology continues to evolve toward smaller process nodes, higher wafer yields, and increasingly complex fabrication processes, the demand for ultra-precise chemical management systems has never been greater. Modern semiconductor manufacturing facilities rely on a wide range of specialty chemicals, including acids, solvents, photoresists, developers, CMP slurries, and cleaning agents. These chemicals must be delivered safely, accurately, and consistently to various production tools while maintaining the highest standards of purity and process stability.

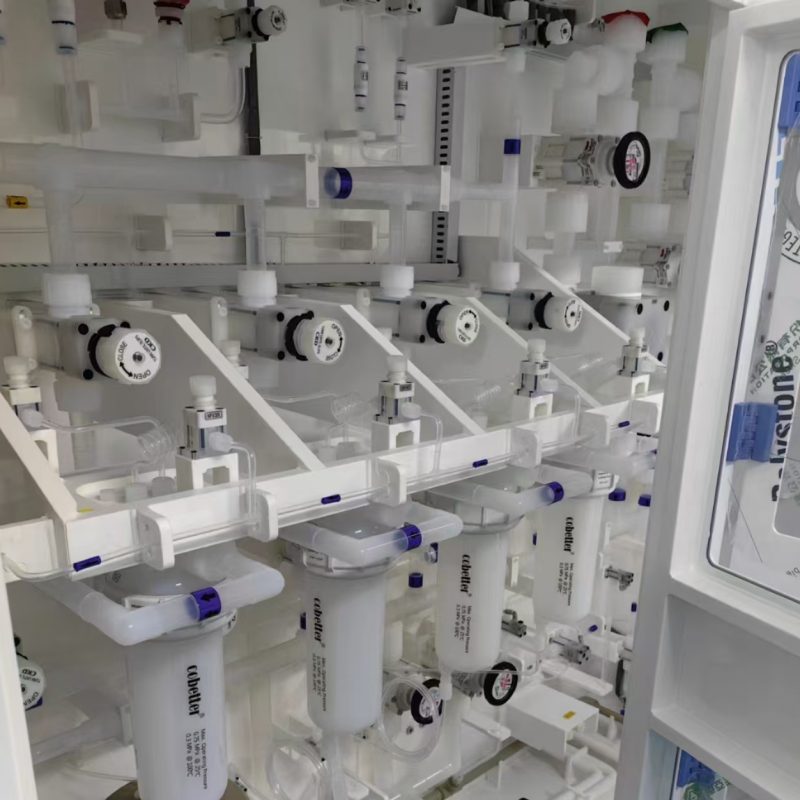

Advanced Chemical Delivery Modules (CDMs) have emerged as critical infrastructure within semiconductor fabrication facilities. These integrated systems provide automated chemical storage, transfer, filtration, monitoring, and dispensing functions that ensure precise chemical distribution throughout manufacturing processes. By combining intelligent controls, high-purity materials, and advanced safety features, chemical delivery modules significantly enhance production efficiency, process consistency, and operational safety.

This article explores the key features, technologies, benefits, and applications of advanced chemical delivery module solutions designed specifically for semiconductor manufacturing environments.

The Importance of Chemical Delivery Systems in Semiconductor Fabrication

Semiconductor manufacturing involves hundreds of process steps that require highly controlled chemical usage. Whether in photolithography, wet etching, cleaning, chemical mechanical planarization (CMP), or advanced packaging, chemical purity and delivery accuracy directly influence device performance and production yield.

Even minor contamination, pressure fluctuations, or inaccurate flow control can result in defects, yield loss, and significant production costs. Therefore, fabs require chemical delivery systems capable of:

• Maintaining ultra-high purity standards
• Providing accurate flow and pressure control
• Ensuring repeatable chemical dosing
• Preventing contamination and particle generation
• Supporting continuous production operations
• Enhancing worker and environmental safety

Advanced Chemical Delivery Modules are engineered to meet these stringent requirements while supporting the increasingly demanding processes associated with advanced semiconductor technologies.

Key Components of an Advanced Chemical Delivery Module

A modern Chemical Delivery Module integrates multiple subsystems into a compact and efficient platform.

Chemical Storage and Supply Management

The module receives chemicals from bulk storage tanks, day tanks, or chemical containers and manages the transfer process to production equipment.

Key features include:

• Automatic chemical replenishment
• Level monitoring systems
• Leak detection mechanisms
• Redundant supply configurations
• Secondary containment structures

These features ensure uninterrupted chemical supply while minimizing operational risks.

High-Purity Filtration Systems

Particle contamination remains one of the most significant threats to semiconductor yields. Advanced CDMs incorporate multiple stages of high-efficiency filtration to remove particles and contaminants before chemicals reach process tools.

Typical filtration technologies include:

• PTFE membrane filters
• Ultra-high-purity cartridge filters
• Sub-micron filtration systems
• Chemical-compatible filtration materials

These filtration systems help maintain process integrity throughout the chemical delivery pathway.

Precision Flow Control

Accurate chemical dosing is essential for process repeatability and uniformity.

Modern modules utilize:

• Mass flow controllers
• Precision diaphragm pumps
• Metering pumps
• Flow sensors
• Automated control valves

These components provide stable flow rates and precise volume control, supporting critical semiconductor processes that require exceptional accuracy.

Pressure Management Systems

Pressure stability directly affects chemical dispensing performance.

Advanced pressure control systems typically include:

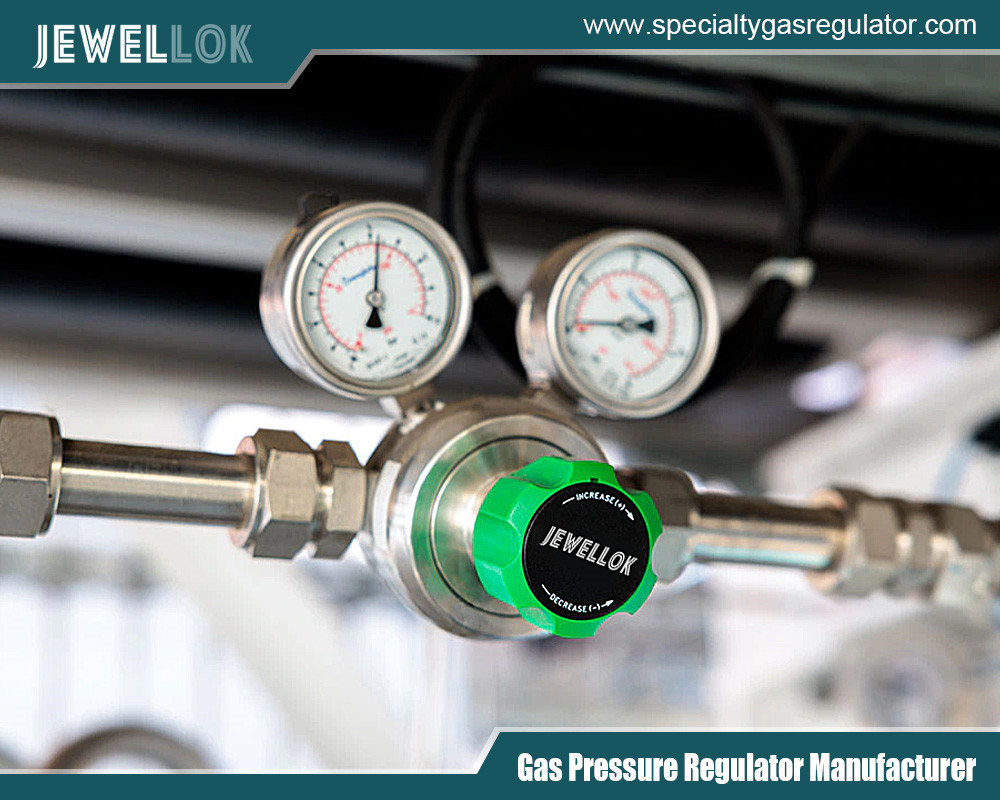

• Pressure regulators
• Pressure transducers
• Automated feedback loops
• Surge suppression devices
• Safety relief mechanisms

By maintaining stable operating conditions, these systems improve process consistency and equipment reliability.

Automation and Smart Control Technologies

Automation has become a defining feature of next-generation chemical delivery systems.

PLC-Based Control Architecture

Most advanced modules employ programmable logic controllers (PLC) to manage operational sequences, safety interlocks, and process monitoring.

PLC systems provide:

• Real-time monitoring
• Automated alarm handling
• Recipe management
• Process data logging
• Remote diagnostics

The result is improved operational efficiency and reduced human intervention.

Human Machine Interface (HMI)

Modern HMIs allow operators to monitor system status and control operations through intuitive graphical interfaces.

HMI functions typically include:

• Chemical inventory monitoring
• Flow and pressure visualization
• Alarm management
• Maintenance scheduling
• System diagnostics

User-friendly interfaces simplify operation while enhancing system visibility.

Industry 4.0 Integration

Advanced semiconductor fabs increasingly demand digital connectivity and smart manufacturing capabilities.

Chemical delivery modules can integrate with:

• Manufacturing Execution Systems (MES)
• Factory Automation Systems
• SCADA platforms
• Data analytics software
• Predictive maintenance systems

These capabilities support real-time process optimization and improved manufacturing intelligence.

High-Purity Material Selection

Material compatibility and cleanliness are critical factors in chemical delivery system design.

Advanced modules utilize carefully selected materials such as:

Fluoropolymer Components

Fluoropolymers provide excellent chemical resistance and low contamination characteristics.

Common materials include:

• PFA (Perfluoroalkoxy)
• PTFE (Polytetrafluoroethylene)
• PVDF (Polyvinylidene Fluoride)

These materials are widely used in tubing, valves, fittings, and flow paths.

Electropolished Stainless Steel

For specific applications requiring metal components, high-purity electropolished stainless steel is often selected.

Common specifications include:

• 316L Stainless Steel
• Electropolished internal surfaces
• Low sulfur content
• High corrosion resistance

These materials help reduce particle generation and contamination risks.

Ultra-Clean Manufacturing Standards

To meet semiconductor requirements, components are manufactured and assembled under strict cleanliness protocols, including:

• Cleanroom assembly
• High-purity cleaning processes
• Particle control procedures
• Surface passivation treatments
• Quality validation testing

These measures ensure that chemical delivery systems maintain the required purity levels.

Advanced Safety Features

Handling hazardous chemicals requires robust safety mechanisms.

Modern chemical delivery modules incorporate multiple layers of protection.

Leak Detection Systems

Integrated sensors continuously monitor for chemical leaks.

Detection technologies include:

• Conductivity sensors
• Optical sensors
• Chemical vapor detectors
• Secondary containment monitoring

Immediate alarm generation enables rapid response and risk mitigation.

Emergency Shutdown Systems

In the event of abnormal conditions, automated shutdown functions protect personnel and equipment.

Typical triggers include:

• High-pressure conditions
• Low-pressure conditions
• Chemical leaks
• Pump failures
• Power interruptions

Automatic isolation minimizes potential hazards.

Ventilation and Exhaust Integration

Many semiconductor chemicals generate hazardous vapors that require controlled exhaust management.

Advanced modules may integrate with:

• Scrubber systems
• Exhaust ventilation networks
• Gas detection systems
• Environmental monitoring platforms

This integration enhances workplace safety and regulatory compliance.

Applications Across Semiconductor Manufacturing Processes

Chemical delivery modules support numerous semiconductor manufacturing operations.

Photolithography

Photolithography processes require highly controlled delivery of:

• Photoresists
• Developers
• Edge bead removers
• Solvent chemicals

Precise dispensing ensures pattern accuracy and process repeatability.

Wet Etching

Wet etching operations utilize aggressive chemicals including:

• Hydrofluoric acid
• Nitric acid
• Sulfuric acid
• Phosphoric acid

Chemical delivery modules provide safe and accurate handling of these critical process chemicals.

Wafer Cleaning

Wafer cleaning processes depend on consistent delivery of:

• DI water
• Cleaning agents
• Oxidizing chemicals
• Surface treatment solutions

Reliable chemical management improves wafer cleanliness and device performance.

Chemical Mechanical Planarization (CMP)

CMP operations require precise slurry delivery.

Advanced modules support:

• Slurry circulation
• Filtration
• Flow stabilization
• Concentration management

These functions contribute to improved planarization performance and yield enhancement.

Advanced Packaging

As semiconductor packaging technologies evolve, advanced packaging facilities increasingly rely on chemical delivery systems for:

• Cleaning processes
• Surface treatments
• Plating chemicals
• Specialty formulations

The flexibility of modern CDMs enables support for diverse packaging requirements.

Benefits of Advanced Chemical Delivery Modules

Improved Process Consistency

Automated control and precise dosing reduce process variability and improve repeatability across production runs.

Enhanced Product Yield

Stable chemical delivery minimizes defects and contamination, directly contributing to higher wafer yields.

Increased Operational Efficiency

Automation reduces manual intervention, lowers labor requirements, and improves production uptime.

Reduced Chemical Waste

Accurate dispensing and inventory management minimize chemical consumption and waste generation.

Improved Safety Performance

Integrated monitoring and protection systems reduce the risk of chemical exposure and environmental incidents.

Lower Cost of Ownership

Although advanced systems require initial investment, their long-term benefits include:

• Reduced downtime
• Lower maintenance costs
• Improved productivity
• Higher manufacturing yields

These advantages contribute to significant cost savings over the system lifecycle.

Future Trends in Chemical Delivery Technology

The future of semiconductor chemical management is increasingly driven by automation, digitalization, and sustainability.

Emerging developments include:

Artificial Intelligence and Predictive Analytics

AI-enabled monitoring systems can analyze operational data to predict maintenance requirements and optimize performance.

Smart Chemical Management

Advanced sensors and analytics provide real-time visibility into chemical usage, quality, and inventory levels.

Enhanced Sustainability

Future systems are expected to focus on:

• Reduced chemical consumption
• Improved recycling capabilities
• Lower energy usage
• Reduced environmental impact

Support for Advanced Semiconductor Nodes

As semiconductor manufacturers continue transitioning toward advanced process technologies, chemical delivery systems must provide even tighter control over purity, flow, pressure, and contamination management.

Conclusion

Advanced Chemical Delivery Modules have become indispensable components of modern semiconductor manufacturing facilities. By integrating high-purity fluid handling technologies, intelligent automation, precision control systems, and comprehensive safety features, these solutions ensure the reliable delivery of critical process chemicals throughout semiconductor production.

As fabs continue pursuing higher yields, smaller device geometries, and increased manufacturing efficiency, the role of sophisticated chemical delivery infrastructure will become even more important. Investing in advanced chemical delivery module solutions enables semiconductor manufacturers to achieve superior process performance, operational reliability, safety compliance, and long-term competitive advantage in an increasingly demanding global semiconductor industry.
