High-Purity Chemical Dispense Unit (CDU) Systems for Semiconductor Wet Process Chemical Supply Applications

Introduction

In modern semiconductor manufacturing, process purity, chemical stability, and precise fluid delivery control are essential factors that directly impact wafer yield, device reliability, and manufacturing efficiency. As semiconductor process nodes continue to evolve toward advanced technologies below 5nm, contamination control standards within wet processing environments have become increasingly stringent.

Semiconductor wet process tools rely heavily on ultrapure chemical delivery systems to transport aggressive process chemicals safely and consistently. Among these systems, the Chemical Dispense Unit (CDU) has become a critical subsystem for managing high-purity chemical supply in semiconductor wet benches, cleaning tools, etching equipment, and surface preparation applications.

A high-performance CDU system ensures precise chemical dosing, stable pressure regulation, contamination-free fluid handling, and safe chemical distribution across multiple process tools. Designed specifically for high-purity semiconductor environments, CDU systems play a vital role in maintaining process repeatability, minimizing particle generation, and supporting advanced wet chemical applications.

This article explores the technical architecture, design principles, key components, material selection, and performance advantages of high-purity CDU systems for semiconductor wet equipment chemical supply applications.

Semiconductor Wet Process Chemical Supply Challenges

Semiconductor wet processing involves numerous critical chemical treatments used during wafer fabrication, including:

• Wafer cleaning
• Oxide removal
• Photoresist stripping
• Surface conditioning
• Chemical etching
• Metal contamination removal
• Particle cleaning
• Surface passivation

These applications commonly utilize highly corrosive and sensitive chemicals such as:

• Hydrofluoric Acid (HF)
• Sulfuric Acid (H₂SO₄)
• Nitric Acid (HNO₃)
• Hydrochloric Acid (HCl)
• Ammonium Hydroxide (NH₄OH)
• Hydrogen Peroxide (H₂O₂)
• Ozone DI Water
• Buffered Oxide Etchant (BOE)
• SC1 / SC2 Cleaning Solutions

Chemical supply systems handling these fluids face several technical challenges:

Ultra-High Purity Requirements

Even trace contamination at the parts-per-billion (ppb) level can introduce wafer defects, metal contamination, or particle generation, leading to reduced yield and device failure.

Chemical Compatibility Requirements

Aggressive acids, oxidizers, and alkaline solutions require highly corrosion-resistant wetted materials capable of long-term chemical exposure.

Precise Flow and Pressure Control

Semiconductor process repeatability depends on stable chemical flow rates, pressure consistency, and accurate dispense timing.

Safety and Leak Prevention

Hazardous chemicals require redundant safety protection, leak detection mechanisms, containment strategies, and automated emergency shutdown functions.

These demanding operational conditions necessitate highly engineered CDU systems optimized specifically for semiconductor chemical delivery environments.

What is a Chemical Dispense Unit (CDU)?

A Chemical Dispense Unit (CDU) is an integrated fluid management platform used to store, regulate, filter, monitor, and distribute high-purity process chemicals to semiconductor wet processing equipment.

The CDU serves as an intermediary control station between bulk chemical supply systems and point-of-use semiconductor tools.

Its primary functions include:

• Chemical storage buffering
• Pressure regulation
• Flow stabilization
• Filtration management
• Degassing control
• Chemical monitoring
• Multi-tool distribution
• Safety interlock protection
• Automated chemical dispense control

A typical semiconductor CDU architecture integrates multiple functional modules into a compact, cleanroom-compatible skid assembly.

High-Purity CDU System Architecture

A semiconductor-grade CDU system typically consists of several integrated subsystems.

Chemical Supply Interface

The CDU receives chemicals from:

• Bulk chemical delivery systems
• Day tanks

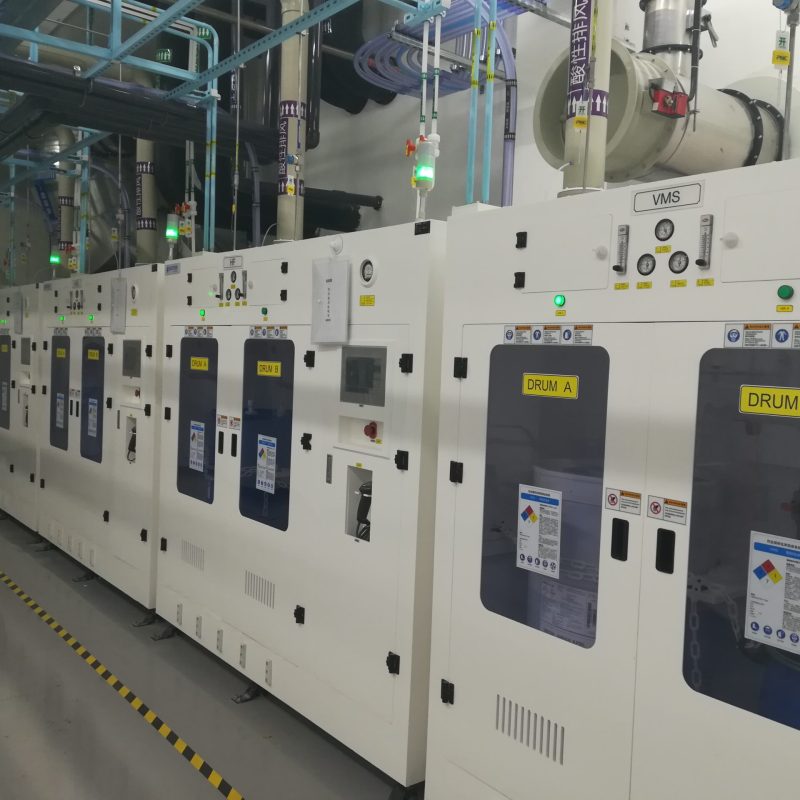

• Chemical cabinets
• Drum transfer stations
• Central chemical distribution networks

The inlet configuration must maintain closed-loop purity protection to prevent atmospheric contamination and moisture intrusion.

High-Purity Chemical Reservoir Module

The chemical reservoir functions as an intermediate storage and buffering chamber.

Key design considerations include:

• Low particle generation
• Dead-leg minimization
• Smooth internal surface finishes
• Chemical compatibility
• Level monitoring integration

Advanced CDU systems often utilize:

• PFA tanks
• PVDF reservoirs
• High-purity fluoropolymer vessels

These materials provide excellent resistance against strong acids, oxidizers, and solvent exposure.

Pump and Pressure Control Section

Accurate chemical transport requires highly stable fluid pressure management.

Common semiconductor CDU pump technologies include:

• Diaphragm pumps
• Air-operated double diaphragm (AODD) pumps
• Magnetically coupled pumps
• Bellows pumps
• High-purity centrifugal pumps

Pressure control systems may integrate:

• Pressure transducers
• Precision regulators
• Pulsation dampeners
• Closed-loop control algorithms

Maintaining consistent dispense pressure is essential for process uniformity and chemical consumption optimization.

Ultrapure Filtration Module

Filtration represents one of the most critical contamination control functions within CDU systems.

Typical filtration stages include:

• Pre-filtration
• Final filtration
• Point-of-use filtration

Common filter ratings include:

• 0.2 μm
• 0.1 μm
• 50 nm ultrafiltration

Advanced filtration technologies help remove:

• Particles
• Gel contaminants
• Metallic impurities
• Chemical decomposition byproducts

High-purity filter housings are commonly manufactured from:

• PFA
• PTFE
• PVDF
• High-purity polypropylene

Flow Measurement and Monitoring System

Modern CDU systems incorporate real-time instrumentation for process monitoring and control.

Integrated sensors may include:

• Flow meters
• Pressure sensors
• Temperature sensors
• Conductivity analyzers
• Leak detectors
• Tank level transmitters

Real-time monitoring enables:

• Process diagnostics
• Preventive maintenance
• Alarm generation
• Automated recipe control
• Chemical consumption tracking

Advanced CDU platforms frequently support digital communication protocols including:

• SECS/GEM
• Ethernet/IP
• Modbus TCP
• PLC integration

Material Selection for High-Purity Semiconductor CDU Systems

Material compatibility is one of the most important design criteria for semiconductor chemical delivery equipment.

Metal contamination, corrosion products, and extractables must be minimized to maintain process integrity.

Common semiconductor CDU wetted materials include:

PFA (Perfluoroalkoxy Alkane)

PFA is widely recognized as the preferred material for semiconductor wet chemical handling.

Advantages include:

• Excellent chemical resistance
• Ultra-low extractables
• High temperature capability
• Superior purity performance
• Smooth internal surfaces

PFA is commonly used for:

• Tubing
• Valves
• Tanks
• Manifolds
• Pump components

PTFE (Polytetrafluoroethylene)

PTFE offers exceptional corrosion resistance across a broad range of aggressive chemicals.

Typical applications include:

• Valve seats
• Seals
• Linings
• Gaskets

PVDF (Polyvinylidene Fluoride)

PVDF provides strong mechanical performance combined with excellent chemical resistance.

Typical CDU applications include:

• Piping systems
• Reservoirs
• Valve bodies
• Structural components

High-Purity Stainless Steel

While fluoropolymers dominate corrosive wet chemical handling, electropolished stainless steel may still be used for selected compatible chemical applications and non-wetted structural assemblies.

Automation and Intelligent CDU Control

The semiconductor industry increasingly demands intelligent chemical delivery platforms capable of supporting Industry 4.0 manufacturing environments.

Modern CDU systems commonly integrate:

PLC-Based Automation

Programmable logic controllers enable:

• Automated valve sequencing
• Recipe management
• Pump control
• Alarm handling
• Safety logic execution

Human Machine Interface (HMI)

Touchscreen HMI systems provide operators with:

• Process visualization
• Alarm notifications
• System diagnostics
• Parameter configuration
• Historical trend monitoring

Predictive Maintenance Functions

Advanced CDU platforms support predictive analytics through continuous monitoring of:

• Filter differential pressure
• Pump operating conditions
• Flow performance trends
• Chemical consumption rates

These capabilities help reduce unplanned downtime and optimize maintenance scheduling.

Safety Design in Semiconductor CDU Systems

Because semiconductor wet process chemicals are highly hazardous, CDU safety engineering is mandatory.

Critical safety functions typically include:

Leak Detection Systems

Integrated leak sensors provide rapid detection of:

• Chemical spills
• Line failures
• Seal degradation
• Connection leakage

Secondary Containment Design

Chemical containment trays and enclosed cabinets prevent accidental chemical release into cleanroom environments.

Emergency Shutdown Interlocks

Automated interlocks can immediately isolate chemical flow upon detection of:

• Pressure anomalies
• Leak alarms
• Pump failures
• Emergency stop activation

Ventilation and Exhaust Integration

Proper exhaust design supports:

• Vapor removal
• Corrosive gas mitigation
• Operator protection
• Regulatory compliance

Advantages of High-Purity CDU Systems in Semiconductor Wet Equipment Applications

Deploying advanced CDU systems delivers significant operational and process advantages.

Enhanced Process Stability

Stable chemical delivery improves process consistency and wafer-to-wafer repeatability.

Reduced Contamination Risk

High-purity fluid paths minimize particle generation and chemical contamination.

Improved Yield Performance

Precise chemical management directly supports higher semiconductor manufacturing yields.

Increased Equipment Reliability

Robust CDU engineering reduces maintenance frequency and unplanned production interruptions.

Flexible Tool Integration

Modular CDU designs enable scalable deployment across various wet process platforms.

Future Development Trends

The evolution of semiconductor manufacturing is driving continuous innovation in CDU technology.

Future trends include:

Smart CDU Platforms

AI-enabled diagnostics and digital twin monitoring are expected to enhance predictive maintenance capabilities.

Advanced Material Innovation

Next-generation fluoropolymers and ultra-low extractable materials will further improve purity performance.

Compact Modular Architecture

Space-efficient CDU designs will support increasing fab density requirements.

Sustainability Optimization

Future CDU systems will emphasize:

• Reduced chemical waste
• Lower energy consumption
• Water conservation
• Chemical recycling integration

Conclusion

High-purity Chemical Dispense Unit (CDU) systems are essential components within semiconductor wet process chemical supply infrastructure. As semiconductor device geometries continue to shrink and contamination tolerances become increasingly strict, CDU performance requirements are evolving rapidly.

Through advanced material selection, precision fluid control, intelligent automation, and rigorous safety engineering, modern CDU systems provide the reliability, purity, and process consistency required for semiconductor wet equipment applications.

For semiconductor manufacturers pursuing higher yield, enhanced contamination control, and advanced process capability, investing in optimized high-purity CDU technology represents a critical step toward next-generation semiconductor production excellence.
