Advanced Chemical Dispense Unit Systems for Safe Acid and Solvent Handling Applications

Chemical Dispense Units (CDUs) are critical subsystems in modern industrial environments, particularly in semiconductor manufacturing, pharmaceutical production, and advanced chemical processing. These systems are designed to safely store, transfer, and precisely dispense hazardous chemicals such as strong acids and organic solvents. This article provides a comprehensive technical overview of CDUs, including their design principles, key components, material compatibility considerations, safety mechanisms, and emerging trends. Special emphasis is placed on handling corrosive acids and volatile solvents, where system integrity and operator safety are paramount.

1. Introduction

The increasing complexity of industrial processes has driven the need for highly controlled chemical handling systems. In sectors such as semiconductor fabrication, even minor contamination or inaccurate chemical dosing can lead to significant yield loss. Chemical Dispense Units (CDUs) address these challenges by providing automated, closed-loop systems that ensure precise delivery of chemicals while minimizing human exposure.

Acids such as sulfuric acid (H₂SO₄), hydrofluoric acid (HF), and nitric acid (HNO₃), as well as solvents like isopropyl alcohol (IPA), acetone, and N-Methyl-2-pyrrolidone (NMP), present unique handling challenges. These chemicals may be highly corrosive, toxic, flammable, or volatile. Therefore, CDU design must balance precision, safety, and durability.

2. System Overview

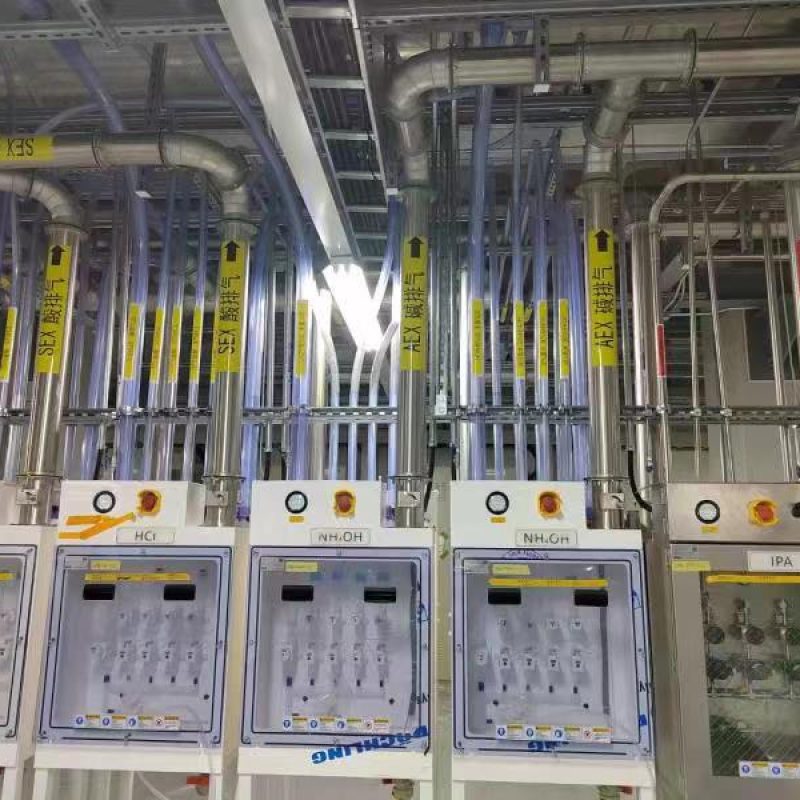

A typical CDU is an integrated system consisting of chemical storage, fluid transfer lines, control valves, sensors, and automation modules. The system is designed to deliver chemicals from bulk containers or reservoirs to process tools with high accuracy and repeatability.

2.1 Functional Objectives

The primary functions of a CDU system include:

• Safe containment of hazardous chemicals
• Accurate metering and dispensing
• Prevention of contamination
• Real-time monitoring and control
• Integration with upstream and downstream systems

2.2 Application Areas

CDUs are widely used in:

• Semiconductor wet processing (etching, cleaning)
• Flat panel display manufacturing
• Photovoltaic production
• Pharmaceutical and biotech industries
• Specialty chemical processing

3. Key Components of a CDU

3.1 Chemical Storage Modules

Chemical storage typically involves high-purity containers such as HDPE drums, stainless steel tanks, or fluoropolymer-lined vessels. For acids, materials like PTFE, PFA, or PVDF are preferred due to their excellent corrosion resistance. Solvent storage often requires explosion-proof containers with grounding provisions to prevent static discharge.

3.2 Pumps and Fluid Delivery Systems

Pump selection depends on chemical properties and process requirements. Common types include:

• Diaphragm pumps for high-purity applications
• Magnetically coupled centrifugal pumps for leak-free operation
• Peristaltic pumps for precise low-flow dispensing

For acid handling, pumps must resist corrosion and maintain structural integrity over time. For solvents, compatibility with organic compounds and resistance to swelling or degradation is critical.

3.3 Valves and Fittings

Valves control flow direction, pressure, and isolation. High-purity diaphragm valves made of PTFE or PFA are commonly used in CDU systems. All fittings must be leak-tight and chemically compatible to prevent contamination and ensure safety.

3.4 Sensors and Instrumentation

Accurate monitoring is achieved through:

• Flow meters (Coriolis, ultrasonic)
• Pressure sensors
• Level sensors (ultrasonic, capacitive)
• Temperature sensors

These sensors provide real-time data for process control and safety interlocks.

3.5 Control Systems

Modern CDUs are equipped with programmable logic controllers (PLCs) or distributed control systems (DCS). These systems enable:

• Automated dispensing sequences
• Alarm management
• Data logging and traceability
• Remote monitoring and diagnostics

4. Material Compatibility Considerations

Material selection is one of the most critical aspects of CDU design. Incompatible materials can lead to corrosion, contamination, or catastrophic failure.

4.1 Acid Handling

Strong acids require materials with high chemical resistance:

• PTFE/PFA: उत्कृष्ट resistance to most acids, ideal for high-purity systems
• PVDF: अच्छा mechanical strength with good chemical resistance
• Quartz: Used in ultra-high purity applications

Special care must be taken when handling hydrofluoric acid, which can attack glass and many metals.

4.2 Solvent Handling

Organic solvents can cause swelling or degradation of certain polymers:

• Stainless Steel (316L): widely used for solvent compatibility
• Fluoropolymers: suitable for aggressive solvents
• Elastomers: must be carefully selected (e.g., FFKM, PTFE) to avoid permeation

4.3 Cross-Contamination Prevention

To prevent cross-contamination:

• Dedicated lines for different chemicals
• Use of purge systems (e.g., nitrogen)
• Minimal dead volume design

5. Safety Design and Risk Mitigation

Handling acids and solvents involves significant risks, including chemical burns, toxic exposure, and fire hazards. CDUs incorporate multiple layers of safety controls.

5.1 Containment and Leak Detection

Secondary containment systems are essential. Leak detection sensors (conductivity-based or optical) can trigger automatic shutdowns.

5.2 Ventilation and Exhaust Systems

Proper ventilation is required to remove hazardous vapors. For solvents, explosion-proof exhaust systems are necessary to prevent ignition.

5.3 Grounding and Static Control

Solvents are often flammable; therefore:

• All metallic components must be grounded
• Anti-static materials may be used
• Flow rates must be controlled to minimize static buildup

5.4 Emergency Shutdown Systems

Emergency stop (E-stop) functions allow operators to quickly halt operations. Automated interlocks can shut down the system if abnormal conditions are detected.

5.5 Personal Safety Integration

CDUs are often integrated with facility safety systems, including:

• Gas detection systems
• Fire suppression systems
• Access control mechanisms

6. Precision and Process Control

Precision dispensing is crucial in applications like semiconductor manufacturing, where chemical concentrations and volumes must be tightly controlled.

6.1 Flow Control Techniques

• Closed-loop control using flow meters
• Pulse-based dispensing for micro-volume applications
• Time-pressure dispensing methods

6.2 Calibration and Validation

Regular calibration ensures accuracy. Validation protocols include:

• Gravimetric testing
• Inline sensor verification
• Statistical process control (SPC)

6.3 Automation and Integration

CDUs can be integrated with Manufacturing Execution Systems (MES) for:

• Recipe management
• Batch tracking
• Quality assurance

7. Maintenance and Reliability

7.1 Preventive Maintenance

Routine inspections and component replacement schedules are essential to prevent failures. Critical components include seals, valves, and sensors.

7.2 Cleaning and Flushing

To maintain purity:

• Automated flushing systems are used
• Compatible cleaning agents must be selected
• Drying processes (e.g., nitrogen purge) are implemented

7.3 Failure Modes

Common failure modes include:

• Seal degradation
• Pump wear
• Sensor drift

Early detection through predictive maintenance technologies can significantly improve system reliability.

8. Environmental and Regulatory Considerations

CDUs must comply with environmental and safety regulations, such as:

• OSHA standards for hazardous materials
• EPA regulations for emissions and waste
• SEMI standards in semiconductor industries

Waste chemical handling systems must be integrated to ensure proper disposal or recycling.

9. Emerging Trends and Innovations

9.1 Smart CDUs

Integration of IoT and AI technologies enables:

• Predictive maintenance
• Real-time optimization
• Remote diagnostics

9.2 Miniaturization

Compact CDU designs are being developed for space-constrained environments, especially in advanced semiconductor fabs.

9.3 Enhanced Materials

New materials with improved chemical resistance and lower contamination levels are being introduced, such as advanced fluoropolymers and composite materials.

9.4 Sustainability

Efforts are being made to reduce chemical waste and energy consumption through:

• Efficient dispensing algorithms
• Recycling systems
• Green chemistry approaches

10. Conclusion

Chemical Dispense Units play a vital role in ensuring safe, precise, and efficient handling of acids and solvents in modern industrial processes. Their design requires careful consideration of material compatibility, system integration, and safety mechanisms. As industries continue to demand higher precision and reliability, CDUs are evolving with advanced automation, smart technologies, and sustainable practices.

Understanding the technical aspects of CDU design and operation is essential for engineers and operators working in environments where chemical handling is a critical component. By implementing robust CDU systems, organizations can enhance process efficiency, ensure regulatory compliance, and most importantly, protect both personnel and the environment.
